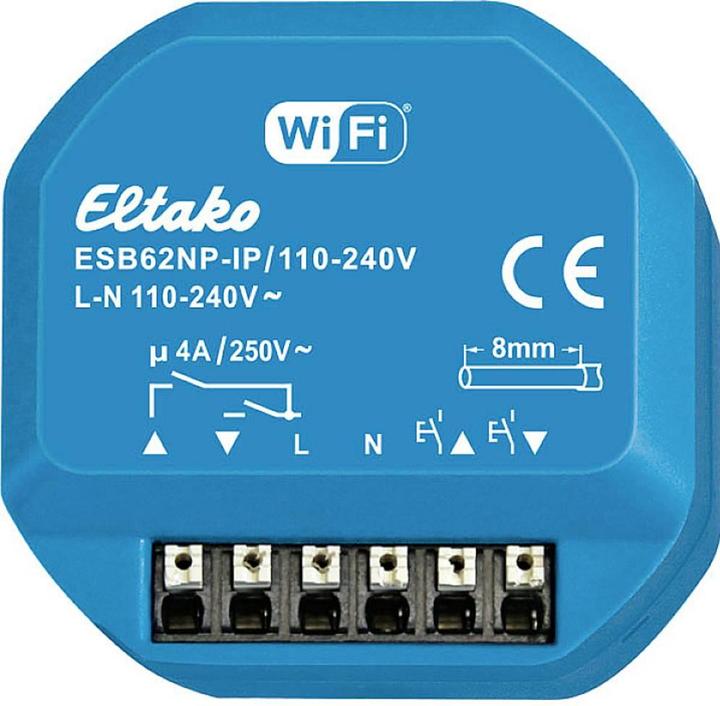

Eltako ESB62NP-IP

Shutter actuator
Price in EUR including VAT
Delivered between 8.1.2026 and 15.1.2026
10 pieces in stock at supplier
free shipping

Product details

Eltako shading actuator IP via Wi-Fi, 1+1 switch 4A/250V AC, not potential-free, for a shading element motor 230V AC. With automatic end position detection. Apple Home certified, REST API, and built for Matter. Standby loss is only 0.8 watts. For flush mounting. Dimensions: 49x51mm, 25mm deep. The connection terminals are plug terminals for wire cross-sections from 0.2mm² to 2.5mm². Contact switching at zero crossing to protect the contacts. Supply, switching, and control voltage locally 110-240V. In the event of a power failure, it is defined to switch off. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. With a control input for a possibly installed mains voltage control switch. A glow lamp current is not permitted. The Wi-Fi connection uses the 2.4 GHz frequency band and allows for over-the-air updates (OTA). This actuator is Apple Home certified, allowing it to be controlled directly through the Apple Home app and Siri without the need for an additional controller or gateway. The Apple Home app provides the following options: - Create If-Then automations including geofencing. - Manual switching. - Retrieve status. For remote access, an Apple Home hub, such as HomePod mini, is required. The optional configuration of the actuator is done via the Eltako Connect app. A development version of the REST API is available on the device's online product page and is continuously being developed. The actuator meets all requirements for the Matter standard.

Key specifications

communicating
Wi-Fi
Actuator type
Shutter actuator
Smart Home Systems
Apple Home
Mounting type
Flush-mounted
Items per sales unit
1 x
Operating voltage
230 V
Item number
24493464

General information

Manufacturer
Eltako
Category
Actuator
Manufacturer no.
30062003
Release date
16.1.2023

Colour

Colour
Blue
Exact colour description
Blue

Material

Material group
Plastic
Material
Thermoplastic resin

Actuator properties

Actuator type
Shutter actuator
Max. Switching capacity
1000 W
rated current
16 A
Operating voltage
230 V
Number of switching outputs
1 x
Mounting type
Flush-mounted
Protection type (IP code)
IP20

Smart home features

Smart Home
Compatible
Smart Home Systems
Apple Home
communicating
Wi-Fi
Radio frequency
2400000000 Hz
Requires Smart Home Hub
No

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

Product dimensions

Length
49 mm
Width
25 mm
Height
51 mm
Weight
40 g

Legal Notice

Product Safety

Package dimensions

Length
9 cm
Width
6.60 cm
Height
5 cm
Weight
55 g
