Esylux RC 230i
20 mMore than 10 pieces in stock at supplier
Product details

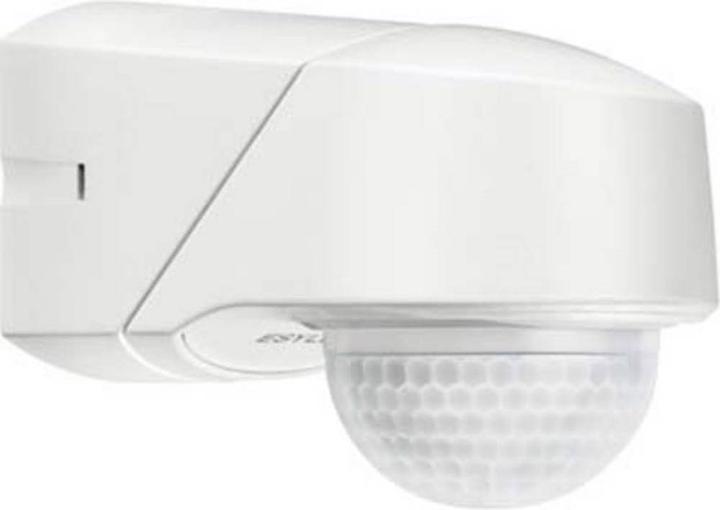

Motion detector with a 230° field of detection and long range. It features 360° anti-creep protection for uninterrupted detection, which can be switched off by remote control. The device is programmable by remote control, allowing for functions such as continuous light on/off and automatic read-in of the current light value. A permanently stored factory program ensures immediate operational readiness. Operating errors are prevented thanks to an integrated selector switch for test function, remote control, and potentiometer setting. It has a one-hand plug-in base mounting and double diaphragm cable entry. The concealed connection socket offers a large wiring space. Sensor range adjustment is facilitated by an additional focus LED as an adjustment aid. Retractable setting elements prevent unintentional adjustments of the parameters. Wall or ceiling mounting is possible without accessories due to the swivel joint. Individual areas can be masked out using the enclosed cover cap, which can be cut to size. A special base for inside and outside corner mounting is available as an accessory.
type of sensor | PIR |
mounting style | Duvet, Face |
Motion sensor type | Motion sensor |
Exact colour description | white RAL number (similar): 9010 |
coverage angles | 230° |
Range | 20 m |
Item number | 13050301 |
Manufacturer | Esylux |
Category | Motion sensors |
Manufacturer no. | EM10015311 |
Release date | 7.4.2020 |
Colour | White |
Exact colour description | white RAL number (similar): 9010 |
Material group | Plastic |
Material | Polycarbonate (PC) |
Motion sensor type | Motion sensor |
Application range | Outdoor |
type of sensor | PIR |
coverage angles | 230° |
Range | 20 m |
Protection type (IP code) | IP54 |
mounting style | Duvet, Face |
Power supply | Electrical connection |
Output voltage | 230 V |
Power consumption | 2300 W |
Smart Home | Not compatible |
Requires Smart Home Hub | No |
Control type | Remote control |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | Motion detector 230 degrees |

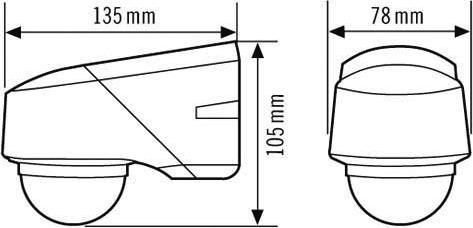

Length | 13.50 cm |
Width | 7.80 cm |
Height | 10.50 cm |
Weight | 313 g |
Length | 14.80 cm |
Width | 14.80 cm |
Height | 9.20 cm |
Weight | 440 g |
