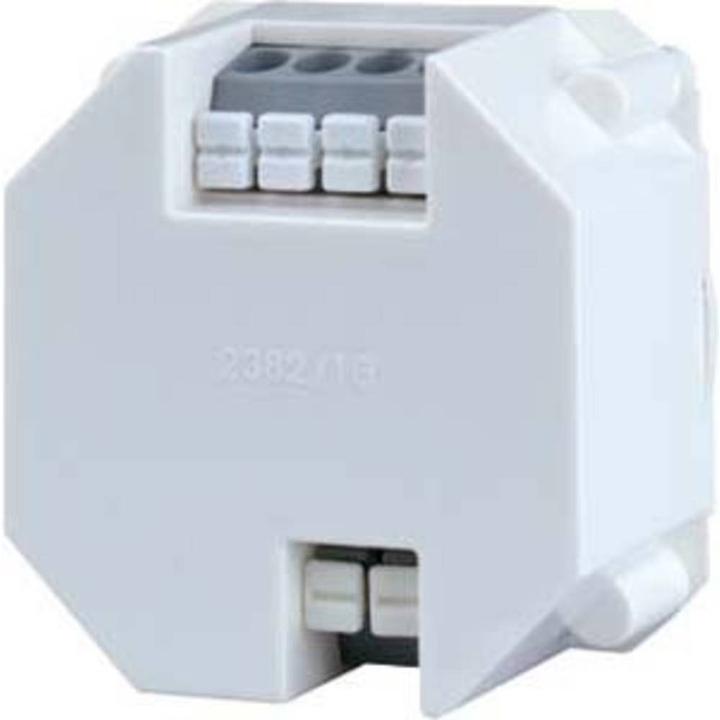

ESYLUX switching module ACTUATORFULLA.C3DALI

Manufacturer: ESYLUX
Name: Switching module flush-mounted for DALI bus
Type: ACTUATORFULLA.C3DALI
Bus system KNX: No
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Radio bidirectional: No
Mounting type: Recessed installation
On-site/manual operation: No
With LED display: No
Max. digital inputs: 1
Max. switching capacity: 2300 W
Output power: 0.2 W
Suitable for C-load: No
Max. number of switching outputs: 1
Number of switching outputs: 1
Max. rated current: 10 A
Rated operating voltage: 13..22.4 V
Different phases connectable: No
With bus coupling: Yes
Bus module removable: No

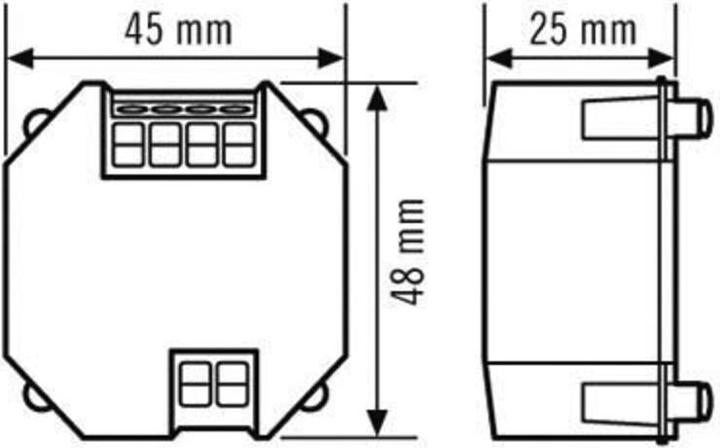

Min. depth of device box: 25 mm
Modular expansion possibility: No
Protection class (IP): IP20

Further details:
Factory setting fully automatic. Fully or semi-automatic switching actuator for channel 3. Pushbutton input for manual switching. Easy programming by remote control with blue mode technology. 4 hours ON/OFF adjustable via universal remote control. Manual override (ON/OFF) via universal remote control. Run-on time 1 minute to 120 minutes. Floating relay with 10 A switching capacity.
EAN: 4015120427473.
