Finder Surge protection arrester for: Distribution cabinet 1 pc.
7 pieces in stock at supplier
Product details

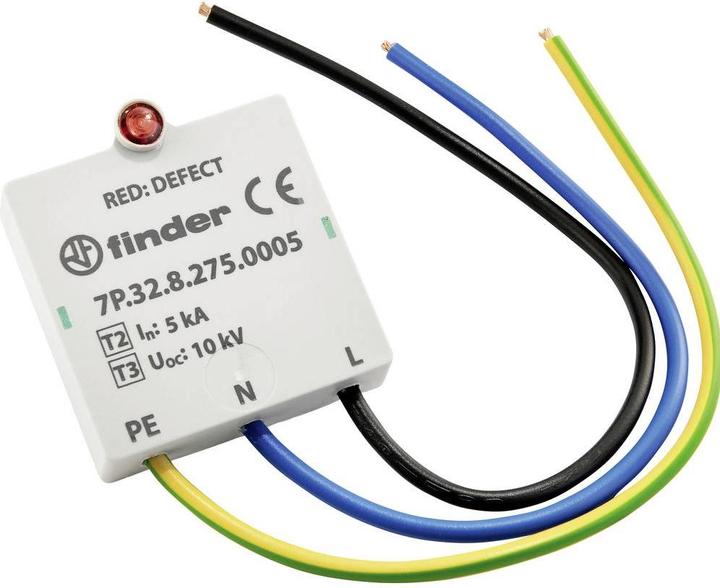

The Finder 7P.32.8.275.0005 surge protection device is a reliable unit designed to protect electrical systems from overvoltages. This surge arrester is intended for use in single-phase TN-S and TT networks and is ideal for installation in distribution cabinets. With a rated voltage of 230 V and a nominal discharge current of 5 kA, it provides effective protection against transient overvoltages that can be caused by lightning strikes or other disturbances in the power grid. The IP65 protection rating ensures that the device is dust-tight and protected against water jets, making it suitable for various environments. Its compact design allows for easy installation both on the surface and flush-mounted, while the LED indicator provides visual signaling in case of varistor failure to monitor the device's status.
- Test class Type 3 for effective protection
- LED indicator for monitoring varistor failure
- Suitable for single-phase TN-S and TT networks
- Compact design for easy installation
- Protection level of 1.65 kV for high safety.
Surge protection type | Surge arrester |
Number of conductors | 1 x |
Test class | Type 3 |
Mounting type | Finery, Flush-mounted |
Item number | 16305215 |
Manufacturer | Finder |
Category | Surge protection |
Manufacturer no. | 7P.32.8.275.0005 |
Release date | 25.7.2021 |
External links |
Surge protection type | Surge arrester |
Number of conductors | 1 x |
Lightning impulse current | 5 kA |
Rated leakage surge current | 5 kA |
Nominal voltage | 230 V |
Protection level | 1.65 V |
Mounting type | Finery, Flush-mounted |
Test class | Type 3 |
Protection type (IP code) | IP65 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 0.01 m |
Width | 0.04 m |
Height | 0.04 m |
