Fischer Cantilever bracket
Price in EUR including VAT
Delivered between Wed, 22.10. and Wed, 5.11.
free shipping
Max. load7
Product details

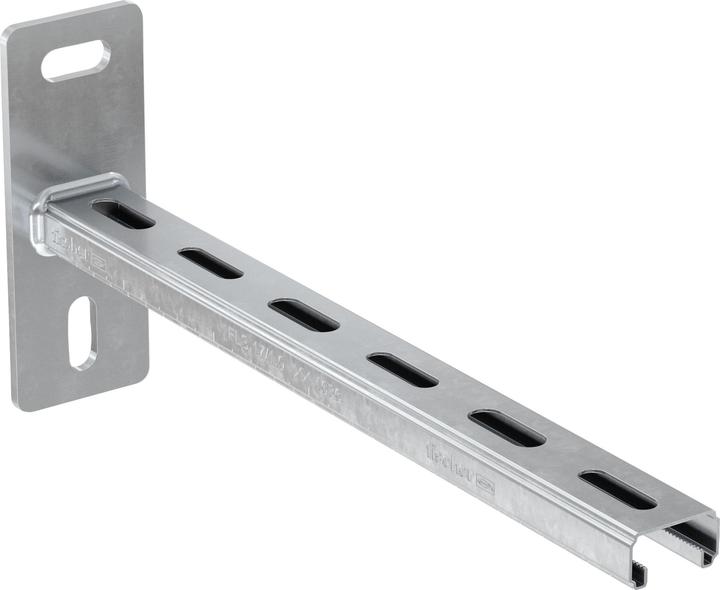

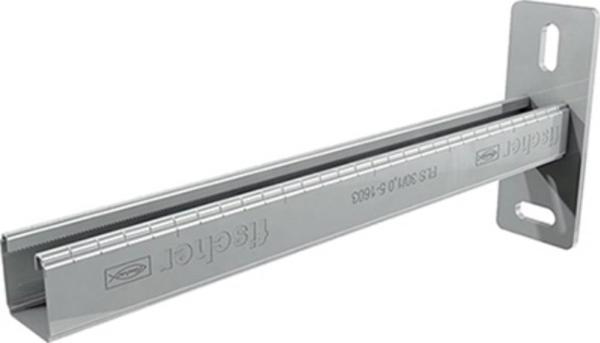

Fischer Germany Cantilever Bracket ALK 17-300
Manufacturer: Fischer Germany
Designation: Cantilever Bracket
Type: ALK 17-300

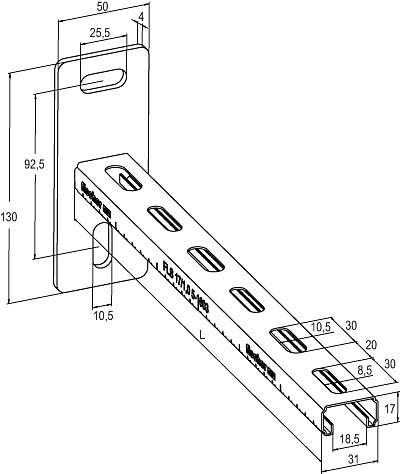

Length: 300 mm
The Fischer Cantilever Bracket ALK serves as a second base element with the mounting rail profile FLS, enabling the economical fastening of individual conduits and pipe runs along the wall. The bracket can be easily aligned thanks to the elongated holes rotated 90° to each other. There is no need to cut the ALK to length, as Fischer offers standard lengths ranging from 200 to 600 mm. The version with galvanic zinc coating is suitable for installations in buildings. The fire test report according to MLAR / EN1363-1 for the ALK 37 provides an added level of safety.
Material | Steel |
Area of use | Inside |
Max. load | 152 kg |
Item number | 23119424 |
Manufacturer | Fischer |
Category | Shelf brackets |
Manufacturer no. | 538739 |
Release date | 16.11.2022 |
Colour | Green |
Exact colour description | Galvanized |
Material group | Metal |
Material | Steel |
Surface finish | Galvanized |
Max. load | 152 kg |
surface finish | Galvanized |
Area of use | Inside |
max. shelf depth | 300 mm |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 10 pcs. |
Scope of delivery | 10 pieces, Folding box, Outrigger bracket ALK 17-300 |
Depth | 300 mm |
Width | 17 mm |
Strength | 1 mm |
