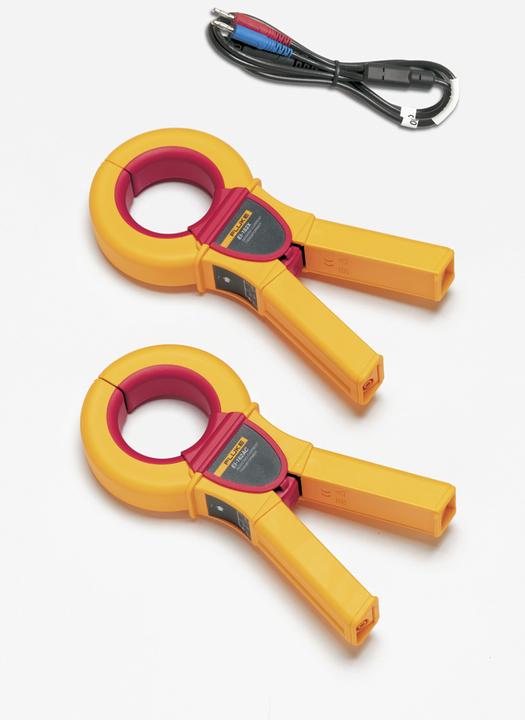

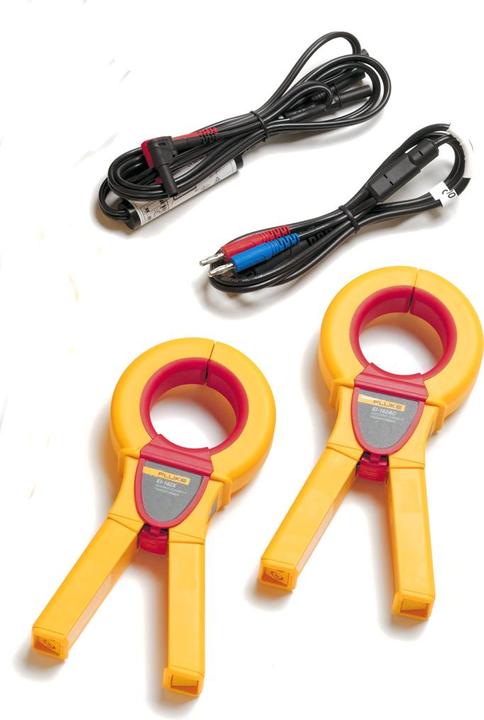

Fluke Current Clamp Set EI-1625

Manufacturer: Fluke
Designation: Current clamp set for Fluke 1625
Type: EI-1625
Multiple display: no
Measurement range selection: manual
Current measurement range/AC: 0.01..1200 A
Current type: AC
Voltage measurement/AC: no
Voltage measurement/DC: no
Resistance measurement range: no
Temperature measurement: no
Capacitance measurement: no
Frequency measurement: no
Power measurement: no
Leakage current measurement: no
Harmonic measurement: no
Measurement in cables with live and return conductors: no
Clamp opening: 55 mm
Designed as an adapter for connection to multimeters: yes
Interface: no
Measurement category: CAT III
Max. voltage measurement category: 600 V
Continuity testing: no

The current clamp set for selective/spike-free procedures is used together with the Fluke 1625 for selective and spike-free measurements. Selective measurement means using a clamp along with grounding spikes to provide the value of the ground loop resistance for a grounding electrode. In spike-free measurement, both clamps are used to measure the ground loop resistance without spikes. Both methods have the advantage of providing measurements without disconnecting the grounding system. Faster and safer. Already included in the Fluke 1625 kit. Both clamps have an inner diameter of 50.8 mm.
