Product Description
Application:

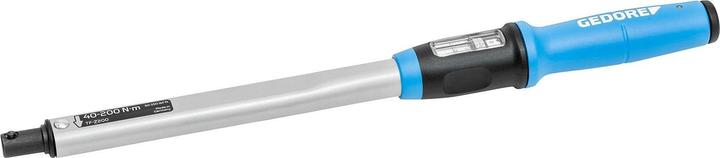

Controlled screw tightening in the range of 40 - 200 N·m / 30 - 150 lbf·ft. Adjustable, releasing, and robust pipe torque wrench with a square drive for industrial and craft use.
Design:
Classified according to DIN EN ISO 6789-2:2017 Type II Class A, calibrated to a maximum permissible deviation of +/- 3%, thus more precise than the +/- 4% required by the standard. Includes traceable test certificate (DIN EN ISO 6789-2:2017). For controlled right and left tightening (tool can be switched for direction change). Square drive diameter 16 mm. Factory calibration reference size: 32 mm (Ø 16 mm). Robust, matte powder-coated steel tube construction with high-quality plastic parts. New ergonomic handle shaped according to the natural grip position of the hand. Clearly recognizable and tactile hand centering aid as well as calibration aid in the center of the handle. Dual scale N·m / lbf·ft with vernier (N·m), enlarged viewing window protects against abrasion and contamination. With vernier scale for N·m main scale to set scale intermediate values; lbf·ft setting only via main scale. Vertical alignment of the scale makes it suitable for both left and right-handed users. Scale mark positioned directly above the scale to prevent reading errors (parallax error). Unit labeling integrated into the scale frame and protected against abrasion through the viewing window. Precise release mechanism produces a clearly noticeable and audible release signal upon reaching the set torque value. Includes roll-away prevention, preventing the tool from rolling away when set down.
