Aluminum, steel, or even painted or anodized, the standard program offers the right material combination and dimensions for every application. GESIPA standard blind rivets come in a wide variety of designs, materials, shapes, lengths, and colors. Depending on the task that a blind rivet needs to fulfill, GESIPA offers the choice between a standard model available from stock or a blind rivet specifically designed for a particular application.

Mandrel: Steel

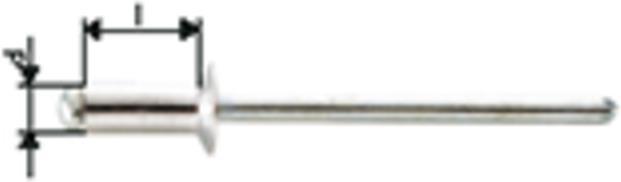

d1 (mm): 5
Grip range (mm): 4.5 - 6.0
Hole diameter (mm): 5.1
Material: Aluminum
Shear strength (N): 2000
Max. setting head diameter (mm): 9
Tensile strength (N): 2800

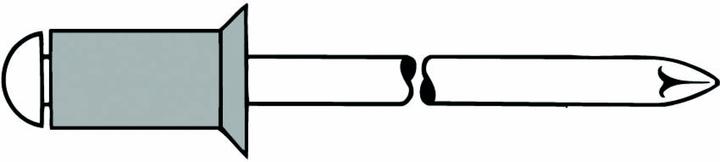

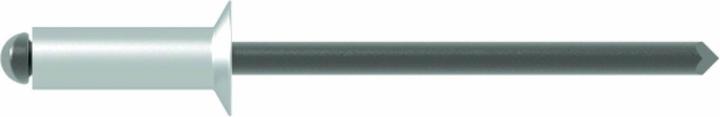

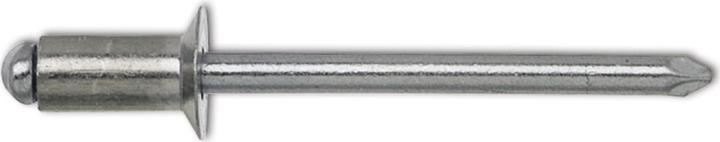

Head shape: Countersunk
ISO: 15978
L (mm): 10
Size (mm): 5 x 10
Brand: Gesipa
Type: Blind rivet
Quantity (pcs): 500.
