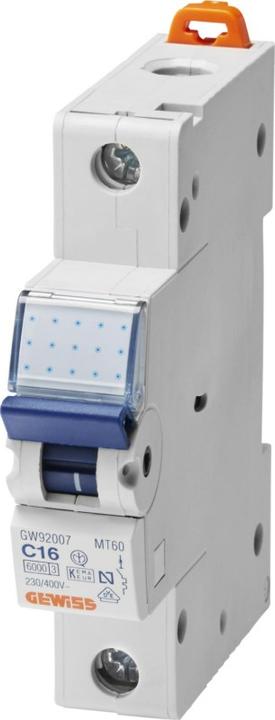

Gewiss Circuit Breaker GW92607

Manufacturer: Gewiss
Designation: Circuit Breaker C16A, 1P, 10KA
Type: GW92607
Installation Depth: 72 mm
Tripping Characteristic: C
Number of Poles (total): 1
Number of Protected Poles: 1
Rated Current: 16 A
Rated Voltage: 400 V
Rated Insulation Voltage Ui: 500 V
Rated Impulse Voltage Withstand Uimp: 4 kV
Rated Switching Capacity Icn according to EN 60898 at 230 V: 10 kA
Type of Voltage: AC
Rated Switching Capacity Icu according to IEC 60947-2 at 230 V: 15 kA
Frequency: 50..60 Hz
Power Loss: 2.49 W
Energy Limitation Class: 3
Flush Mounting: no
Switching Neutral Conductor: no
Overvoltage Category: 3
Degree of Pollution: 3
Additional Devices Possible: yes
Width in Division Units: 1
Protection Class (IP): IP20
Ambient Temperature during Operation: -25..60 °C
Connectable Conductor Cross-section Multi-stranded: 35 mm²
Connectable Conductor Cross-section Single-stranded: 35 mm²
Explosion Protected: no

Gewiss Circuit Breaker GW92607: further details
Miniature Circuit Breaker (MCB) according to EN60898-1, with delayed thermal overload tripping device and electromagnetic short-circuit tripping device. On the left side, a RESTART reset device RM TOP, a RESTART remote drive CM, or two auxiliary devices can be alternatively mounted. With labeling window on the device. Connection (max): 35 mm² with insulated plug-in protection. The connection screws can be equipped with a sealable cover. The switch lever can be sealed in both the ON and OFF positions or locked with a padlock using a lever lock.
