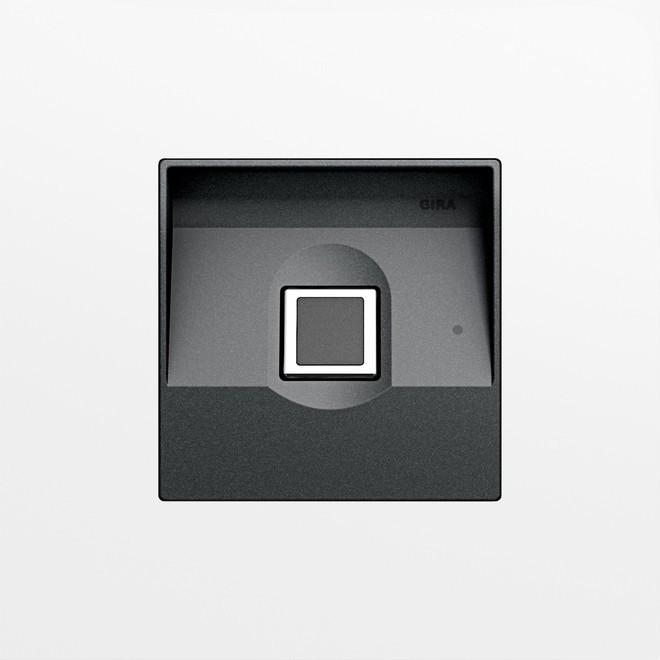

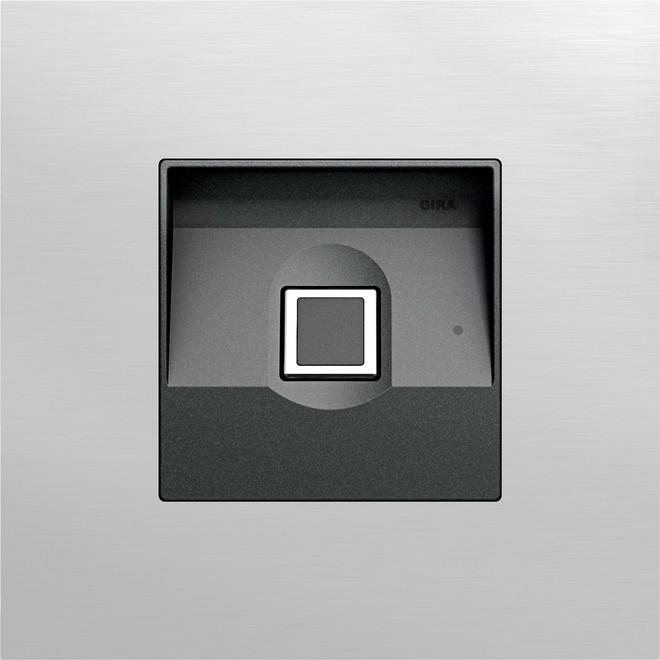

System 106 Keyless Fingerprint Module Bronze - The fingerprint module serves as a professional biometric access control system based on next-generation surface scanning technology. It can be set up and managed via an app. It can be used as a standalone device with Gira TKS switching actuators or in combination with the Gira door communication system as a door call system for multi-unit buildings. The scanning of the outermost layer of skin is done using high-frequency technology. It offers a high recognition rate and resistance to tampering. The system analyzes the unique characteristics of a living human finger. Up to 99 fingers can be managed by the fingerprint reading unit. It reliably recognizes fingers that may have been slightly injured during activities like gardening (only the top layer of skin was affected). Data protection is ensured through encryption methods. The response time from placing the finger to unlocking is approximately 1 second for up to 30 stored fingers and about 3 seconds for up to 99 stored fingers. The fingerprint area features a night design for orientation with white LED lighting. A 360° finger placement is possible. A three-color LED status indicator provides visual signals during programming and operation. The master PIN number is provided on a sealed security card in case the administrator's finger is no longer available. The device can be factory reset using the included security card. An acoustic signal is emitted for users or installers via a confirmation tone. An alarm sounds in case of unauthorized removal of the fingerprint module for sabotage detection. There is a sabotage circuit with a switching actuator in the Gira door communication system. Inputs and outputs include a plug strip connection cable for the Gira door communication system. Typically, children's fingers can be reliably recognized only from the age of 6.
Access system type | Fingerprint door lock |
Closing mechanism | Fingerprint |
Item number | 33191535 |
Manufacturer | Gira |
Category | Access control |
Manufacturer no. | 5551921 |
Release date | 17.5.2023 |
Colour | Bronze |
Exact colour description | Bronze |
Material group | Metal |
Material | Metal |
Access system type | Fingerprint door lock |
Closing mechanism | Fingerprint |
mounting style | Flush-mounted |
Max. Number of fingerprints | 9 x |
Application range | Indoor |
Protection type (IP code) | IP44 |
Requires Smart Home Hub | No |
Smart Home | Not compatible |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Product Safety |
