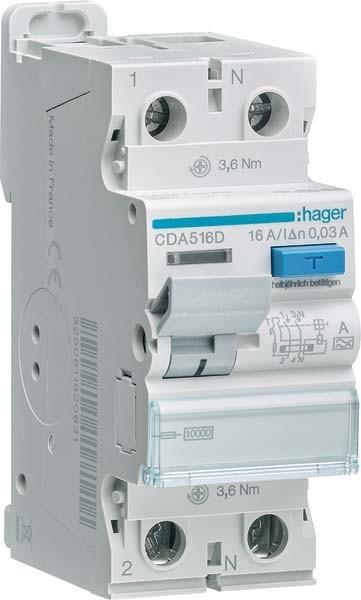

The Hager CDA516D is a highly advanced residual current circuit breaker designed for use in electrical installations. With a rated current of 16 A and a type A tripping characteristic, this 2-pole RCD provides reliable protection against fault currents up to 30 mA. It meets the requirements of DIN EN 61008-2-1 and VDE 0664 Part 10 + 11, making it a safe choice for various applications. The CDA516D is suitable for mounting on a DIN rail and allows for easy installation without additional tools. The connection terminals are equipped with wire insertion protection, which facilitates handling and enhances safety. Additionally, the switch features an external test button that enables quick functionality checks. With its robust construction and high safety standards, the Hager CDA516D is a valuable addition to any electrical installation.
Circuit breaker type | Fault current circuit breaker |
Length | 70 mm |
Width | 2 mm |
number of poles | 2 |
Mounting type | Top-hat rail |
Item number | 31996358 |
Manufacturer | Hager |
Category | Residual-current device |
Manufacturer no. | CDA516D |
Release date | 24.10.2022 |
Circuit breaker type | Fault current circuit breaker |
Mounting type | Top-hat rail |
number of poles | 2 |
Tripping characteristic | A |
Rated current | 16 A |
Rated current | 0.03 A |
Rated voltage | 230 V |
voltage type | AC |
Rated insulation voltage Ui | 500 V |
Residual current (rated differential current) | 0.03 A |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 70 mm |
Width | 2 mm |
