Hager Circuit breaker 3p. B-50A,6kA,3M QC MBS350

Price in EUR including VAT
17Ratings
BrandMore from Hager
Delivered between Tue, 14.10. and Thu, 16.10.
free shipping

Product details

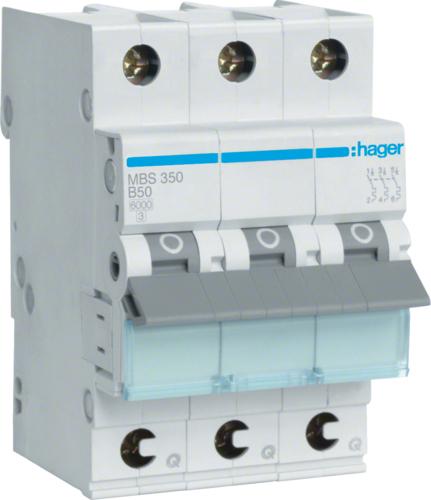

Hager Circuit Breaker MBS350

Manufacturer: Hager
Designation: Circuit breaker 3p. B-50A, 6kA, 3M QC
Type: MBS350
Installation depth: 70 mm
Tripping characteristic: B
Number of poles (total): 3
Number of protected poles: 3
Rated current: 50 A
Rated voltage: 400 V
Rated insulation voltage Ui: 500 V
Rated impulse withstand voltage Uimp: 4 kV
Voltage type: AC
Rated breaking capacity Icn according to EN 60898 at 400 V: 6 kA
Rated breaking capacity Icu according to IEC 60947-2 at 400 V: 10 kA
Frequency: 50..60 Hz
Energy limitation class: 3
Flush mounting: yes
Switching neutral conductor: no
Overvoltage category: 3
Degree of pollution: 2
Additional devices possible: yes
Width in division units: 3
Protection class (IP): IP20
Ambient temperature during operation: -25..70 °C
Connectable conductor cross-section multi-stranded: 1..25 mm²
Connectable conductor cross-section solid: 1..35 mm²
Explosion-proof: no

Hager Circuit Breaker MBS350: further details
3-pole circuit breaker 6kA B-characteristic 50A QuickConnect 3 modules. Circuit breaker with QuickConnect terminal according to DIN EN 60898-1 (VDE 0641 Part 11), outgoing up to 16A and incoming for distribution up to 63A, with time-delayed thermal tripping device for overload protection and electromagnetic tripping device for short-circuit protection. Suitable for retrofitting additional devices. Labeling option directly on the device and individual removal from the phase rail connection by unlocking the DIN rail quick fastening.

Key specifications

Circuit breaker type
Miniature circuit breaker
Length
70 mm
Width
70 mm
number of poles
3
Mounting type
Flush-mounted
Item number
22934182

General information

Manufacturer
Hager
Category
Residual-current device
Manufacturer no.
MBS350
Release date
19.4.2021

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
Mounting type
Flush-mounted
number of poles
3
Tripping characteristic
B
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
500 V
Protection type (IP code)
IP20

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
70 mm
Width
70 mm
Height
83.40 mm
