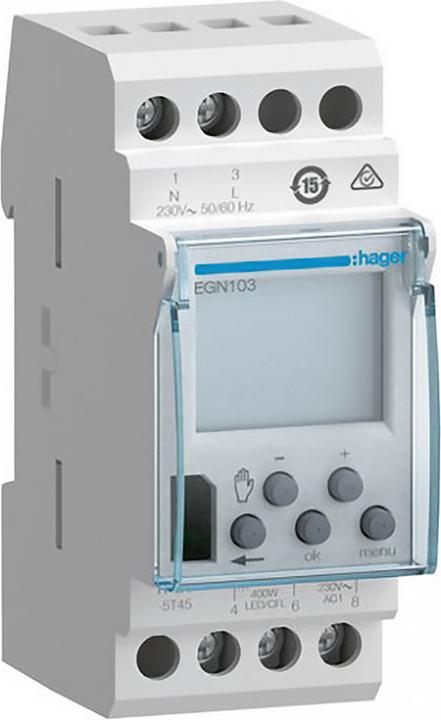

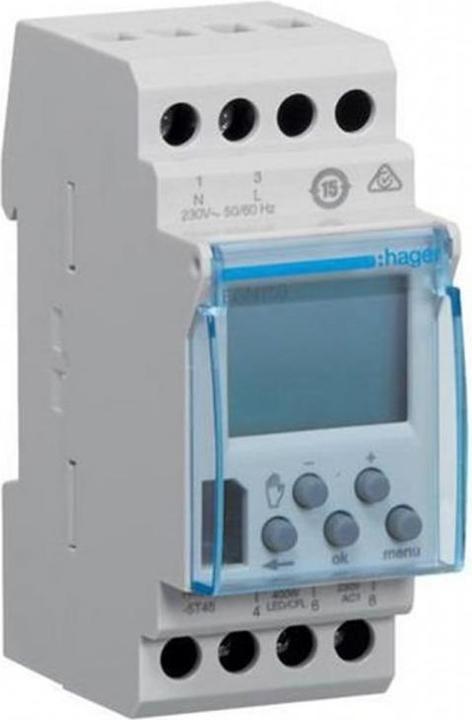

Hager weekly timer EGN103

Manufacturer: Hager
Description: Weekly timer, 1 switch, 16A, 2PLE
Type: EGN103
Mounting type: DIN rail
Number of channels: 1
Supply voltage: 230 V
Type of supply voltage: AC
Frequency of supply voltage: 50-60 Hz
Backup time in hours: 43800
Backup time in years: 5
Accuracy per day: 1.5 s
Text display: Yes
External programming: Yes
With memory card: No
60 min program: Yes
24 h program: Yes
Weekly program: Yes
Annual program: No
Holiday program: No
Pulse program: No
Cycle program: No
Astro program: No
Random program: No
Operating hour counter: No
Network synchronized: No
Quartz controlled: Yes
Radio controlled: No
Radio controlled (DCF77): No
GPS: No
Contact type: Switch (NO/NC)
Number of contacts: 1
Output signal: Other
Shortest switching time channel 1: 1 min
Shortest switching time channel 2: 1 min
Automatic summer/winter time changeover: Yes
Suitable for manual operation: Yes
External button input: No
Switching preselection: No
Rated switching current at 250 V AC: 16 A
Max. switching power LED: 400 W
Potential-free switching contact: No
Protection class (IP): IP20
Width in division units: 2
Width: 35.8 mm
Height: 85 mm
Depth: 61.6 mm

Hager weekly timer EGN103: Additional details
Digital weekly timer, 1-channel with display for time-dependent control with changeover contact, app programming possible. Programming on the device: time and date (factory set), automatic summer/winter time changeover, temporary and permanent exception control On/Off, lockable keyboard via key combination. Bar graph display for quick recognition of daily programming. Programming without mains voltage possible via integrated backup (approx. 5 years). Note: Bluetooth programming via app when the key is inserted in the timer (key not included). Key communication protocol from version Bluetooth 4.2.
EAN: 3250618502435.
