Hager L69759016
50 cmProduct details

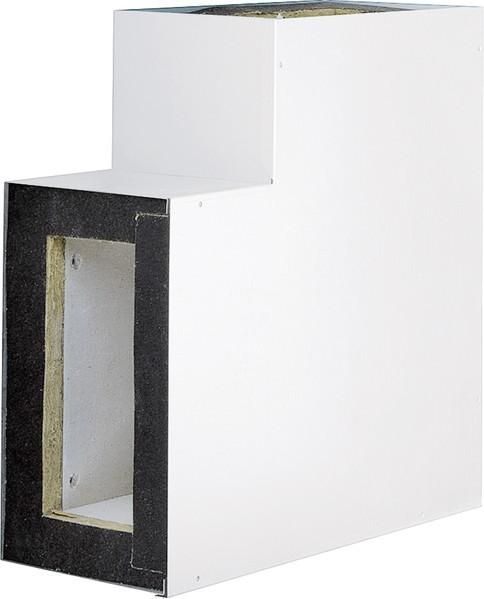

Tehalit flat angle L69759016
Manufacturer: Tehalit
Designation: Flat angle 100x260mm
Type: L69759016
Angle: 90°
Fire resistance class E - functional integrity: 90
External height: 196 mm
External width: 350 mm
Internal height: 103 mm
Internal width: 254 mm
Usable cross-section: 26162 mm²
Insulation material: Other
Sheathing: Steel
Surface protection: Coated
Colour: White
RAL number: 9016
Partition walls possible: Yes
With base perforation: Yes
Cover fixing: Screw
Tehalit flat angle L69759016: further details
Flat angle fire protection duct FWK 90
Functional integrity E90/E30 100x260mm white.
Moulded part as system accessory for fire-resistant cable trunking FWK90 - E90 according to DIN 4102-12 for functional integrity in wall and ceiling installation and E30 according to DIN 4102-12 for functional integrity in suspended installation.
EAN: 4012740019989.
Exact colour description | Traffic information |
Material | Plaster, Steel |
Height | 19.60 cm |
Width | 35 cm |
Length | 50 cm |
Item number | 31821888 |
Manufacturer | Hager |
Category | Cable routing |
Manufacturer no. | L69759016 |
Release date | 12.10.2022 |
Colour | White |
Exact colour description | Traffic information |
Material group | Metal |
Material | Plaster, Steel |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Height | 19.60 cm |
Width | 35 cm |
Length | 50 cm |
