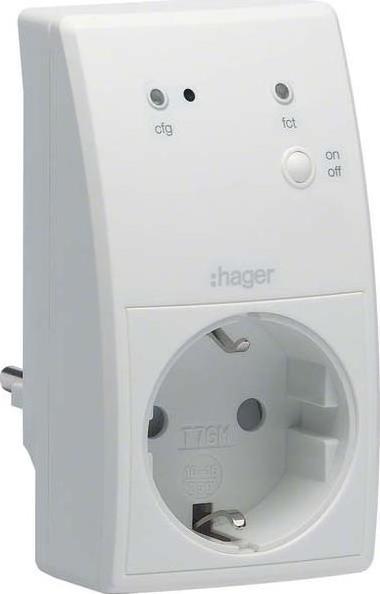

Hager Radio Adapter Plug Actuator TRC270D

Manufacturer: Hager
Designation: Radio Adapter Plug Actuator 16A, Quicklink
Type: TRC270D
KNX Bus System: No
KNX Radio Bus System: Yes
Radio Bus System: Yes
LON Bus System: No
Powernet Bus System: No
Other Bus Systems: None
Bidirectional Radio: Yes
Mounting Type: Other
Local/Manual Operation: Yes
With LED Display: Yes
Max. Switching Power: 3680 W
Output Power: 3680 W
Suitable for C-Load: Yes
Max. Number of Switching Outputs: 1
Number of Switching Outputs: 1
Max. Switching Current: 16 A
Rated Current: 16 A
Rated Operating Voltage: 195-253 V
Connectable to Different Phases: No
With Bus Coupling: No
Bus Module Removable: No
Min. Installation Depth of Device Box: 40 mm
Modular Expansion Option: No
Protection Class (IP): IP30

Additional Details: Radio adapter plug actuator 16A, Quicklink. Flush-mounted output device as an intermediate plug for switching loads in conjunction with Quicklink radio products. Tool-free Quicklink configuration via buttons with LED display or integration via KNX radio media coupler into the KNX-TP system. The device converts switching information into bidirectional commands. Functions include manual override, on/off, switching, scenes, timer, and normally open pushbutton.
