Kaiser Cavity wall
More than 10 pieces in stock at supplier
Product details

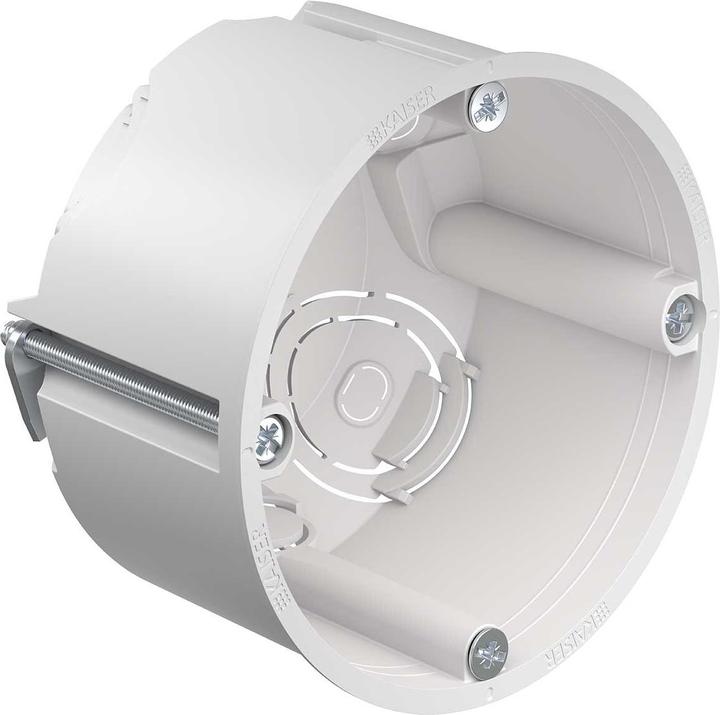

Kaiser cavity wall device box 9063-78
Manufacturer: Kaiser
Designation: Cavity wall device box
Type: 9063-78
Mounting type: Cavity wall
Shape: Round
Design: Device box
Design: Single
Couplable: Yes
Equipment: Without

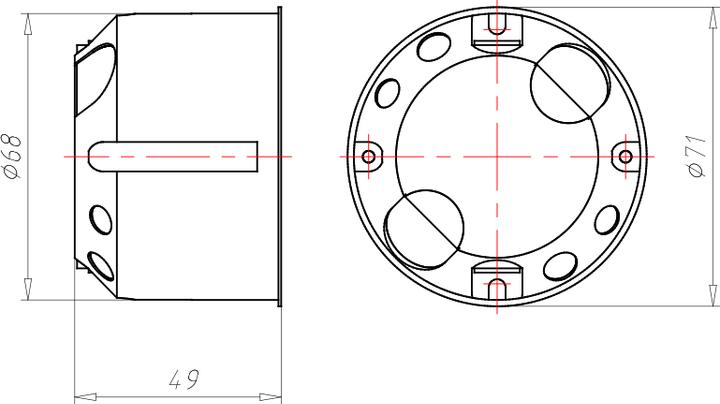

Diameter: 68 mm
Depth: 49 mm
Inside depth: 49 mm
For number of device inserts: 1
Fastening of devices: Screw
With screws: Yes
Housing feed-through through knock-out opening: Yes
Housing feed-through through sealing membrane: No
Housing feed-through through pipe socket: No
Housing feed-through through stepped diaphragm: No
Pipe locking: No
Entry from rear: Yes
Number of entries: 8
Number of grommets supplied: 7
Material: Plastic
Halogen-free: Yes
Surface protection: Other
Color: White
Protection class (IP): IP3X
Cover design: Without
Transparent cover: No
Cover fixing: Screwed
Sealable: No
Functional integrity: Without
With shielding: No
Air-tight: No
Max. conductor cross-section: 2.5 mm²
Terminal position-fixed: No
Luminaire hook fastening: No
Spigot: Tunnel spigot
With nail lugs: No
Special application: Other
Hollow wall device box, O-range®, halogen-free, with device screws, depth 48 mm.
Junction box type | Cavity wall socket |
Height | 150 mm |
Width | 150 mm |
Protection type (IP code) | IPX3 |
Length | 49 mm |
Item number | 17941533 |
Manufacturer | Kaiser |
Category | Junction box |
Manufacturer no. | 9063-78 |
Release date | 16.12.2021 |
Colour | White |
Exact colour description | White |
Material group | Plastic |
Material | Plastic |
Junction box type | Cavity wall socket |
mounting style | Face |
Area of use | Inside |
Protection type (IP code) | IPX3 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 25 pcs. |
Height | 150 mm |
Width | 150 mm |
Length | 49 mm |
Diameter | 68 mm |
