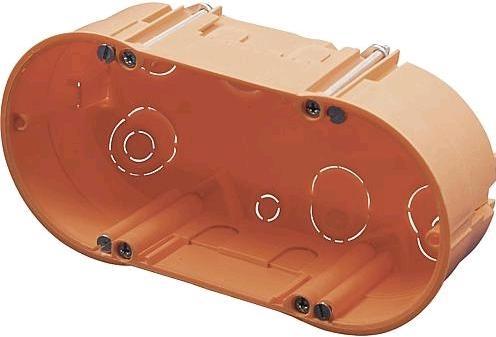

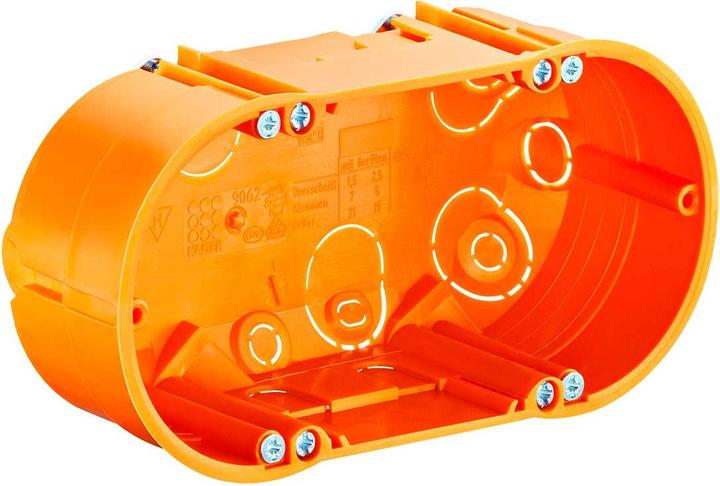

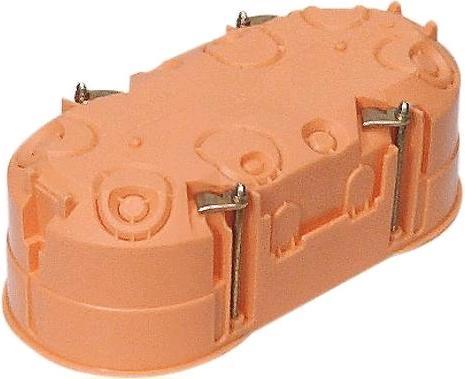

Kaiser Double Hollow Wall Box 9062-02

Manufacturer: Kaiser
Designation: Double Hollow Wall Box
Type: 9062-02
Mounting Type: Hollow Wall
Shape: Round
Design: Device Connection Box/Enclosure
Version: Double
With Rotatable Ring: No
Couplable: Yes
Filling: None

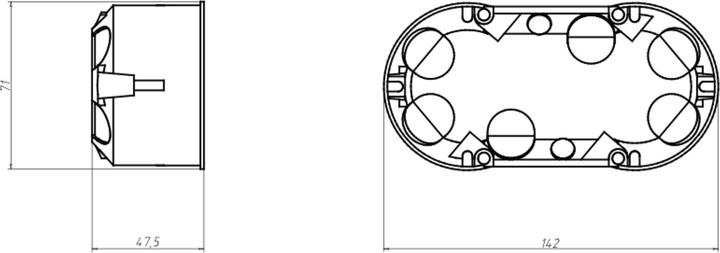

Diameter: 68 mm
Depth: 47 mm
Internal Depth: 45.5 mm
Device Attachment: Screws
With Screws: Yes
Housing Entry through Breakout Opening: Yes
Housing Entry through Sealing Membrane: No
Housing Entry through Pipe Socket: No
Housing Entry through Step Membrane: No
For Pipe Diameter: 20 mm
Pipe Locking: No
Pipe Locking Optional: No
Rear Entry: Yes
Material: Plastic
Halogen-Free: No
Color: Orange
Protection Class (IP): IP3X
Cover Version: None
Transparent Cover: No
Sealability: No
Function Maintenance: None
With Shielding: No
Air Tight: No
Light Hook Attachment: No
Socket: Tunnel Socket
Special Application: Other
With Partition Wall: No

Kaiser Double Hollow Wall Box 9062-02: Additional Details
Double Device Connection Box, Depth 47 mm (9062-02). The new Kaiser hollow wall installation boxes feature proven clip mounting technology and improved product characteristics. A practical design and a targeted selection of cable and conduit entries allow for a variety of applications. Additional boxes for special applications, such as installation in thin-walled constructions or solid wood walls, complete the diverse range. The VDE certification documents the high quality standards.

Installation Type: Basic Installation
Application Area: For Built-in Devices
Depth: 47 mm
Cutout Ø: 2 x 68 mm.
