Kaiser Switch box
More than 10 pieces in stock at supplier
Product details
Kaiser Switch Box UP 1055-62
Manufacturer: Kaiser
Description: Flush-mounted switch box without screws
Type: 1055-62
Mounting method: Flush-mounted
Shape: Round
Design: Device box
Version: Single
With rotating ring: No
Coupleable: Yes
Filling: None

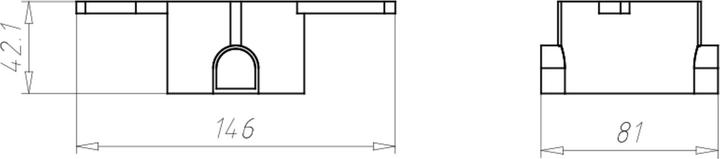

Diameter: 60 mm
Width: 145.8 mm
Depth: 42 mm
Internal depth: 40.1 mm
For number of device inserts: 1
Device mounting: Screws or expansion
With screws: No
Housing entry through knock-out: Yes
Housing entry through sealing membrane: No
Housing entry through pipe socket: Yes
Housing entry through stepped membrane: No
For pipe diameter: 20 mm
Suitable for cable diameter: 11.4 mm
Pipe locking: Yes
Pipe locking optional: No
Rear entry: Yes
Number of entries: 7
Material: Plastic
Halogen-free: Yes
Color: Black
Protection class (IP): IP2X
Cover version: None
Transparent cover: No
Cover fastening: Screwed
Seal-able: No
Function maintenance: None
With shielding: No
Air-tight: No
Max. conductor cross-section: 2.5 mm²
Clamp position fixed: No
Light hook fastening: No
Socket: Tunnel socket
Special application: None
With partition wall: No
Kaiser Switch Box UP 1055-62: Additional Details
Device box for nail fastening, depth 42 mm (1055-62).
Installation type: Basic installation | Application area: For built-in devices | Depth: 42 mm.
Junction box type | Connector socket |
Height | 22 mm |
Width | 145.80 mm |
Protection type (IP code) | IPX2 |
Length | 42 mm |
Item number | 20348286 |
Manufacturer | Kaiser |
Category | Junction box |
Manufacturer no. | 1055-62 |
Release date | 30.3.2022 |
Colour | Black |
Exact colour description | Black |
Material group | Plastic |
Material | Plastic |
Junction box type | Connector socket |
mounting style | Flush-mounted |
Area of use | Outside |
Protection type (IP code) | IPX2 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 10 pcs. |
Height | 22 mm |
Width | 145.80 mm |
Length | 42 mm |
Diameter | 60 mm |
