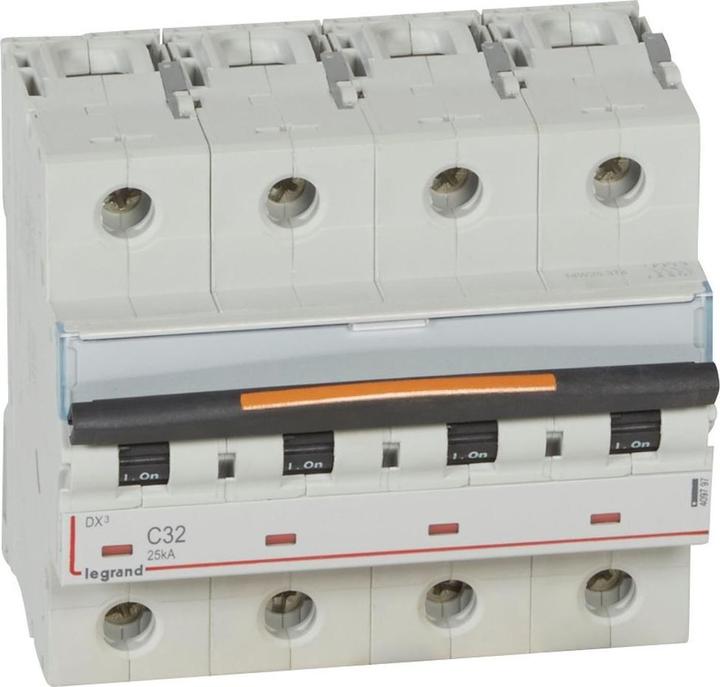

The Legrand DX3 circuit breaker is a high-quality protective switch developed according to the EN 60947-2 standard. With a C-characteristic, this 4-pole switch is ideal for applications that require high inrush currents, such as motors and transformers. The rated current is 32 A, while the rated breaking capacity reaches 25 kA. The switch is designed for a rated voltage of 400 VAC and a frequency of 50/60 Hz. Installation is straightforward on a DIN rail according to EN 60715, supported by two snap-on quick fasteners. A clear information display on the front and a distinct switching position indicator in red/green ensure user-friendly handling. Additionally, the switch features a labeling window and a plug-in protection that allows for safe insertion of the conductor into the terminal block. The Legrand circuit breaker is therefore a reliable choice for circuit protection in demanding electrical applications.

• C-characteristic for high inrush currents
• Distinct switching position indicator in red/green
• Mounting on DIN rail with quick fasteners
• Plug-in protection for safe insertion of the conductor
• Provision for mounting auxiliary devices.
