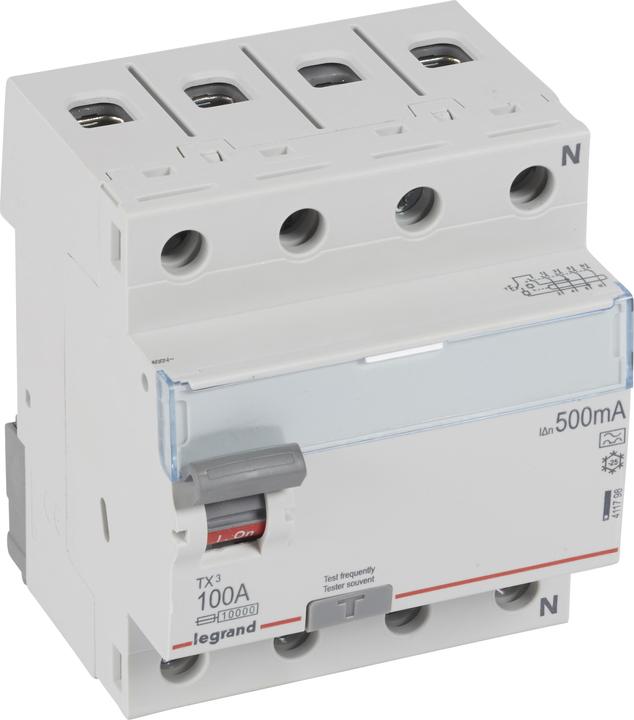

Legrand residual current circuit-breaker 411798

Manufacturer: Legrand
Designation: Residual current circuit-breaker 100A, 4-pole, 500mA
Type: 411798
Number of poles: 4
Rated voltage: 400 V
Rated current: 100 A
Rated residual current: 0.5 A
Rated insulation voltage Ui: 500 V
Rated impulse withstand voltage Uimp: 4 kV
Mounting type: DIN rail
Residual current type: A
Selective type: No
Short-time delayed type: No
Short-circuit strength (Icw): 10 kA
Surge current strength: 0.25 kA
Voltage type: AC
With interlocking device: Yes
Frequency: 50 Hz
Additional devices possible: Yes
Degree of protection (IP): IP20
Width in pitch units: 4
Installation depth: 44 mm
Ambient temperature during operation: -25 to 60 °C
Pollution degree: 2
Connectable conductor cross-section multi-wire: 0.75 to 35 mm²
Connectable conductor cross-section single-wire: 0.75 to 50 mm²
Explosion-proof: No

Further details:
Legrand residual current circuit-breaker TX3, type A, for AC and pulsating DC residual currents in accordance with VDE 0664-10, EN 61008-1, instantaneous, 4-pole, rated current In 100 A, rated residual current Idn 500 mA, rated voltage Un 400 VAC, rated frequency 50 Hz, impulse current-resistant up to 250 A, rated short-circuit current 10 kA with suitable back-up fuse, mounting on top-hat rail EN 60715 with snap-in quick-release fasteners, clear information on the front of each device, clear red/green switching position indicator on the switching lever, with labelling window, with under-plug protection for safe insertion of the conductor into the lift terminal, attachment of auxiliary devices possible.
