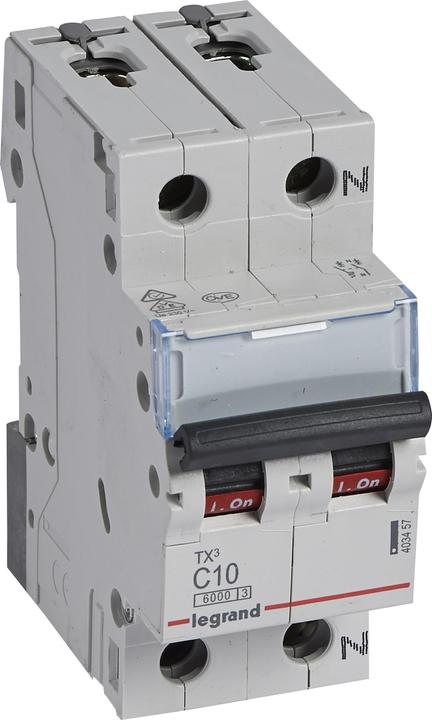

Legrand miniature circuit-breaker 403457
Manufacturer: Legrand
Designation: Miniature circuit-breaker C10A 1-pole + N 6kA
Type: 403457
Mounting depth: 44 mm
Tripping characteristic: C
Number of poles (total): 2
Number of fused poles: 1
Rated current: 10 A
Rated voltage: 230 V
Rated insulation voltage Ui: 500 V
Rated impulse withstand voltage Uimp: 4 kV
Rated breaking capacity Icn to EN 60898 at 230 V: 10 kA
Voltage type: AC
Rated breaking capacity Icn to EN 60898 at 400 V: 6 kA
Frequency: 50..60 Hz
Energy limitation class: 3
Flush mounting: yes
Switching neutral conductor: yes
Degree of pollution: 2
Additional devices possible: yes
Width in pitch units: 2
Protection class (IP): IP20
Explosion-proof: no

Legrand miniature circuit-breaker 403457: further details
Legrand miniature circuit-breaker DX3 according to EN 60898-1, VDE 0641-11, EN 60947-2, 1-pole with connecting neutral, C-characteristic, rated current In 10 A, rated breaking capacity Icn 6 kA according to EN 60898-1, rated voltage Un 230 VAC, rated frequency 50/60 Hz, energy limitation class 3, mounting on DIN rail EN 60715 by means of a latching quick-fixing device, clear information on the front of each device, clear switching position, clear red/green switch position indication on the switch lever (can be locked), with labelling window, with under-plug protection for safe insertion of the conductor in the lift terminal, attachment of auxiliary devices possible. Miniature circuit breakers with C-characteristic are designed for line protection of devices with high inrush currents (e.g. motors and transformers).
