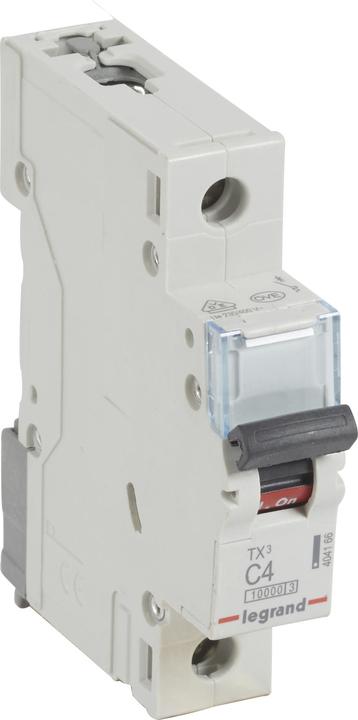

Legrand TX3 miniature circuit-breaker C characteristic, 4A, 1-pole, 10kA,230/400VAC, 1TE 404166

Price in EUR including VAT
Ratings
BrandMore from Legrand
Delivered between Tue, 14.10. and Thu, 16.10.
free shipping

Product details

The TX3 circuit breaker from Legrand is a high-quality protective switch designed according to the standards EN 60898-1, VDE 0641-11, and EN 60947-2. With a C characteristic, this single-pole circuit breaker is specifically suitable for applications that require high inrush currents, such as motors and transformers. The rated current is 4 A, and the breaking capacity is 10 kA, ensuring reliable protection in electrical installations. The switch is designed for a rated voltage of 230/400 VAC and can operate at frequencies of 50/60 Hz. Installation is quick and easy on a DIN rail, and the clear switching position indicator along with the labeling window allows for user-friendly handling. The TX3 circuit breaker also features a finger protection mechanism that enhances safety when inserting the conductor into the terminal block.

  • Energy limitation class 3 for additional protection
  • Snap-on quick fastening for easy installation
  • Clear switching position indicator in red/green
  • Lockable switch lever for increased safety
  • Provision for mounting auxiliary devices.

Key specifications

Circuit breaker type
Miniature circuit breaker
Length
77.80 mm
Width
17.80 mm
number of poles
1
Mounting type
Top-hat rail
Item number
33599073

General information

Manufacturer
Legrand
Category
Residual-current device
Manufacturer no.
404166
Release date
17.5.2023

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
Mounting type
Top-hat rail
number of poles
1
Tripping characteristic
C
Rated voltage
230 V
voltage type
AC
Rated insulation voltage Ui
500 V
Protection type (IP code)
IP20

Origin

Country of origin
France

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
77.80 mm
Width
17.80 mm
Height
88 mm
