Space-saving design with a width of 60 mm and a depth of 130 mm saves space in the control cabinet for power ranges up to 2.2 kW. Innovative interaction options enable new best times during commissioning. With its broad design, the modular construction allows for various product configurations, tailored to the machine's requirements. The i500 is recommended for applications in the fields of pumps and fans, conveyor, drive, winding, forming, tool, and lifting drives.

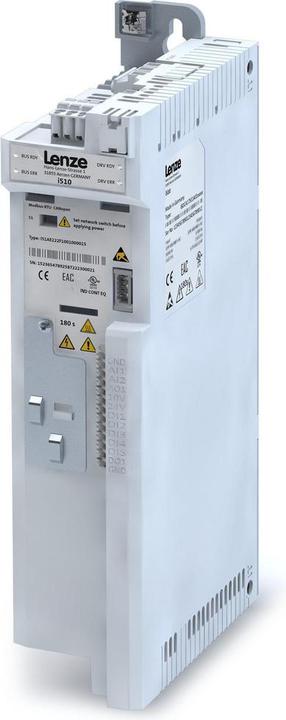

Less is more. The i510 frequency inverter impresses with its slim design starting at 60 x 130 mm, suitable for any control cabinet, and scalable functionality due to its modular construction. Utilize this reliable drive for conveyor, drive, and winding applications, as well as for pumps and fans, and many other machine tasks. Innovative interaction via Wi-Fi enables new best times during commissioning and particularly convenient diagnostics. The inverter already meets the future standard EN 50598-2.

Performance data: 1 AC 230/240 V: 0.25 to 2.2 kW / 1.7 to 9.6 A. 3 AC 400/480 V: 0.37 to 15 kW / 1.3 to 28.2 A.

Easy control of three-phase asynchronous motors thanks to motor control methods U/f characteristic control or vector control. For control functions, there are 5 digital inputs and 1 digital output, as well as 2 analog inputs and 1 analog output. An integrated relay is available for controlling, for example, a holding brake. Operable directly on a 3-phase network connection of 400/480 V in industrial networks. For integration into the plant/machine network, the frequency inverter includes a CANopen interface. Approvals: CE, UL, CSA, EAC, RoHS2, IE2 according to EN 50598-2. Integrated radio interference filter for standard applications. Memory module.
