Space-saving design with a width of 60 mm and a depth of 130 mm saves space in the control cabinet for power ranges up to 2.2 kW. Innovative interaction options enable new best times during commissioning. With a broad setup, the modular design allows for different product configurations, tailored to the requirements of the machine. The i500 is recommended for applications in pumps and fans, conveyor, drive, winding, forming, tool, and lifting drives.

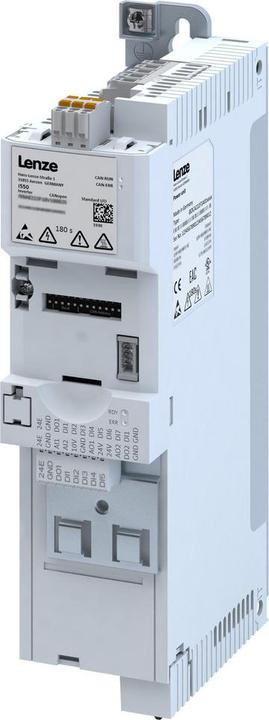

Less is more. The i550 frequency inverter series impresses with its sleek design starting at 60 x 130 mm, suitable for any control cabinet, and scalable functionality due to its modular construction. Utilize this reliable drive for conveyor, drive, and winding applications, for pumps and fans, and many other machine tasks. Innovative interaction via WLAN enables new best times during commissioning and particularly convenient diagnostics. The inverter already meets the future standard EN 50598-2.

Performance data: 1 AC 230/240 V: 0.25 to 2.2 kW / 1.7 to 9.5 A. 3 AC 400/480 V: 0.37 to 132 kW / 1.0 to 254 A.

Easy control of three-phase asynchronous motors thanks to motor control methods U/f characteristic control or vector control. For control functions, there are 5 digital inputs and 1 digital output, as well as 2 analog inputs and 1 analog output. An integrated relay is available for controlling, for example, a holding brake. Can be operated directly on a single-phase power supply of 230/240 V in the industrial network. For integration into the system/machine network, the frequency inverter features a CANopen interface. Approvals: CE, UL, CSA, EAC, RoHS2, IE2 according to EN 50598-2. Integrated radio interference filter for standard applications. Memory module.
