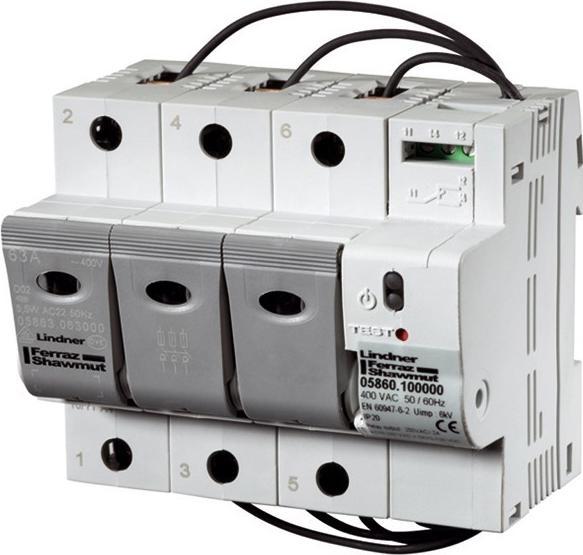

Mersen Meldeschalter 05860.100000

Manufacturer: Mersen
Designation: Signal Switch D0
Switch Position Type: 05860.100000
Type of Accessory/Spare Part: NH Signal Detector
Accessory: yes
Spare Part: yes
Size: other

The D0-LINOCUR is a combination of a load disconnect switch and a NEOZED fuse element rated at 63 A, equipped with significant safety features and advanced switching and clamping technology. The power output of the NEOZED fuse inserts leads to internal heating of the LINOCUR device. To prevent overheating of the device and unwanted premature triggering of the fuse insert, special design measures have been implemented: generously sized conductor paths made of solid copper, strong external spring support under the foot contact, large-area heat transfer through contact via screw cap, extensive contact area at the foot contact, and special contacts with functional separation.

Thanks to this design, the Linocur offers one of the lowest values in terms of power loss in the market for D0 fuse units.

Standards: EN/IEC 60947-3, DIN VDE 43880, DIN VDE 0660 Part 107, DIN VDE 0638, DIN VDE 0636 Part 3, IEC 60269-3.

As additional equipment, Mersen offers three different monitoring devices. D0-LINOCUR monitoring devices are equipped with a green and red LED indicator light and a galvanically isolated changeover contact for remote signaling. In Type 1, the relay output contact opens between terminals 11 and 12 and closes between 11 and 14 when the load disconnect switch is turned off.

EAN: 3605340502800.
