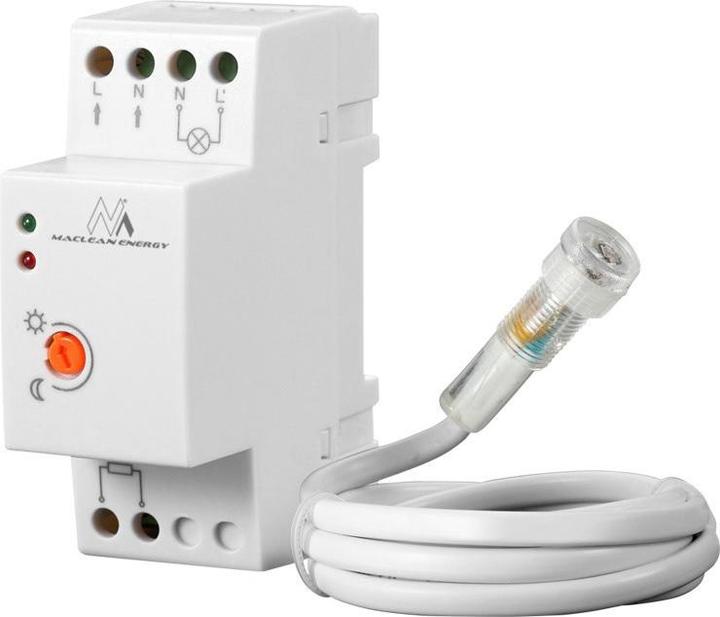

The MCE83 switch is designed for the automatic control of lighting or other electrical devices while saving energy.

With this device, the lighting is turned on and off depending on the time of day. Its operation is not affected by ambient temperature or humidity. The device is versatile – it is perfect for gardens, porches, and public lighting systems such as street lamps.

Specifications:

• Supply voltage: 230 VAC / 50 Hz
• Max. load: 3000 W
• Load current: 20 A
• Light intensity control: under 2 - 100 Lux
• Turn-on delay: 1-2 sec
• OFF trigger delay: 4 - 5 sec
• Power consumption operation/sensor: approx. 0.5 W
• Protection class of the probe: IP65
• Operating temperature: -20 to +40 °C

Set includes:

• Twilight switch for DIN rail mounting
• User manual
• Manufacturer's packaging

Features:

• For the automatic control of lighting or other electrical devices
• Wide range of applications
• Ideal for use in gardens, on porches, and for lighting systems
• Max. load 3000 W
• Protection class of the probe: IP65
• 1-meter round cable 2x0.5 mm² with extension possibility.
