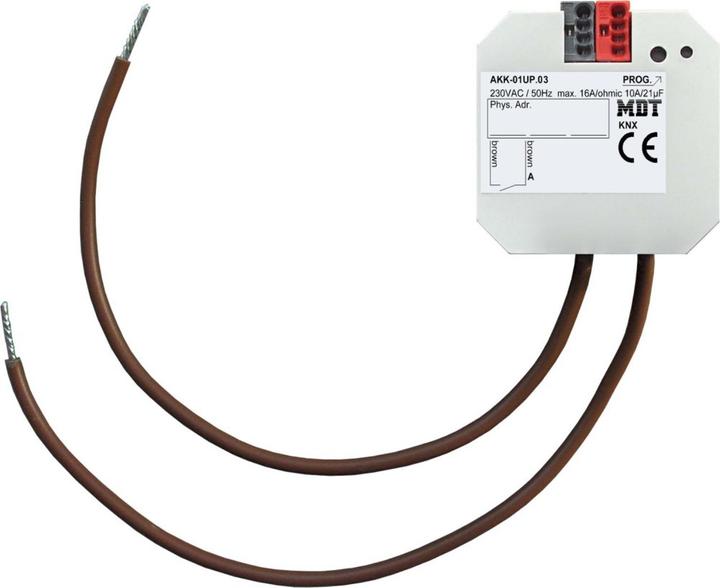

MDT technologies switch actuator 1-fold flush-mounted AKK-01UP.03.

Manufacturer: MDT technologies
Designation: Switch actuator 1-fold flush-mounted
Rated current: 16 A
Rated operating voltage: 230 V
Max. switching capacity: 2000 W
Number of switching outputs: 1
Mounting type: Flush-mounted
With LED display: Yes
Protection class (IP): IP20
Min. depth of device box: 49 mm

This switch actuator is designed for installation in a switch box and features a bistable relay with a maximum current of 16 A for resistive loads. It supports normally open and normally closed operation, time functions (on/off delay), extensive staircase lighting, and pulse functions. The device includes feedback functions for all channels, logical links, and extended scene functions per channel. Central functions and blocking objects for forced operation are also available, along with adjustable behavior on bus voltage failure/restoration.

Dimensions (W x H x D): 41 mm x 41 mm x 22 mm.
