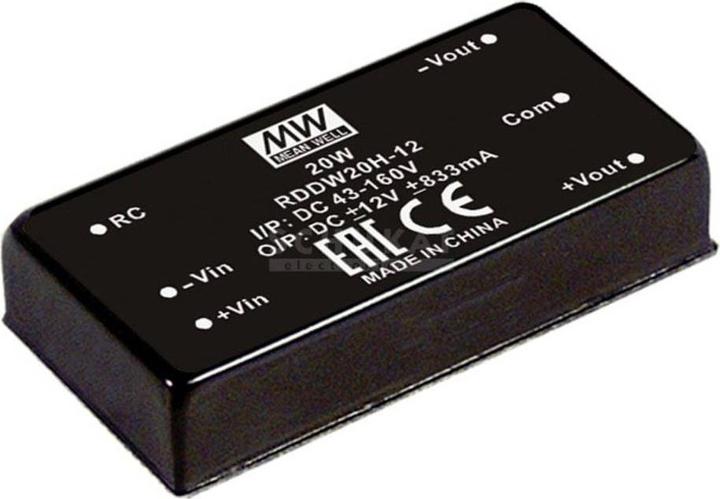

MeanWell DC/DC converter modules RDDW20 series DIP/DIL x1 Case Dual Output 1 Railway

Price in EUR including VAT
Ratings
BrandMore from MeanWell
Delivered between Thu, 13.11. and Sat, 15.11.
Only 2 pieces in stock at supplier
free shipping

input voltage2

Output voltage3

Product details

The Mean Well RDDW20F-05 is a powerful DC/DC converter specifically designed for applications in the railway sector. With an output power of 20 watts and a maximum output voltage of 5 V, this module provides a reliable power supply for various electronic devices. The converter is housed in a compact DIP/DIL 2x1 inch package, allowing for direct mounting on circuit boards. Thanks to its wide input voltage range of 9 V to 36 V and high efficiency of up to 90%, the RDDW20F-05 is versatile and ideal for demanding applications. Additionally, the module features comprehensive protection functions, including short circuit, overload, and overvoltage protection, as well as 1500 V DC isolation between input and output, enhancing safety and reliability.

  • Input voltage ratio of 4:1 for flexible application possibilities
  • No minimum load required, simplifying usage
  • Operating temperature range of -40 °C to +85 °C for extreme environments
  • Comprehensive protection features against short circuit, overload, and overvoltage
  • High efficiency of up to 90% for energy-efficient operation.

Key specifications

input voltage
36 V
Output voltage
5 V
Power output
20 W
Voltage transformer type
Vehicle voltage transformer
Length
5.08 cm
Width
2.54 cm
Height
1.02 cm
Item number
12971187

General information

Manufacturer
MeanWell
Category
Power inverters
Manufacturer no.
RDDW20F-05
Release date
22.3.2020

Voltage Transformer Properties

Voltage transformer type
Vehicle voltage transformer
input voltage
36 V
Output voltage
5 V
Power output
20 W
Electric current output
2 A

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
5.08 cm
Width
2.54 cm
Height
1.02 cm
Weight
35 g
