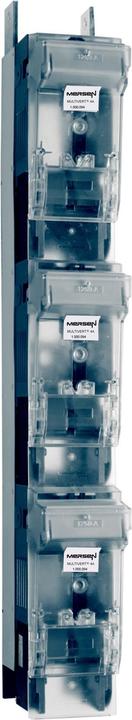

Mersen Fuse Load Switch Rail 1.000.094

Manufacturer: Mersen
Designation: Fuse Load Switch Rail NH Size 4a 1250A 185mm
Type: 1.000.094
Configured as main switch: no
Configured as safety switch: no
Max. rated operational voltage Ue for AC: 690 V
Rated continuous current Iu: 1250 A
Conditional rated short-circuit current Iq: 50 kA
Suitable for fuse inserts: Type A4
Number of poles: 1
With fuse monitoring: no
Connection type main circuit: Rail connection
Cable entry: other
Equipped with connectors: no
Suitable for floor mounting: no
Suitable for front mounting: no
Suitable for busbar assembly: yes
Design of the operating element: Cover handle
Position of the operating element: front
Motor drive optional: no
Motor drive integrated: no
Configured as emergency stop device: no
Protection class (IP), front side: IP20

Mersen Fuse Load Switch Rail 1.000.094: additional details
MULTIVERT NH fuse load switch rails fulfill all functions of an NH fuse load disconnect switch. The design is intended for direct mounting on busbars in a three-pole arrangement. MULTIVERT 1250A switch rails can be directly mounted on 185mm busbar systems. MULTIVERT 1250A switch rails are designed for NH fuse inserts according to IEC/EN 60269-2, VDE 0636-2, size 4a, 1250A. The system is a modular system in which different products can be optimally combined. MULTIVERT allows the user a quick and easy installation option as well as high safety during installation and maintenance. These MULTIVERT switch rails can be mounted on 185mm busbar systems using claw clamps. This version is delivered with cable exit at the top and screw connection M16.
