Mersen Photovoltaic String Box 2 PVBT12-1000V-BH-113

Manufacturer: Mersen
Description: Photovoltaic String Box 2 MPP 1000V
Type: PVBT12-1000V-BH-113
Mounting beside cabinet: no
Mounting above cabinet: no
Mounting below cabinet: no
Number of poles: 3
Max. cross-section of connection cable: 16 mm²
Max. cross-section of feed cable: 16 mm²
Connection type: terminal
Protection class (IP): IP65
Height: 130 mm
Width: 180 mm
Depth: 111 mm

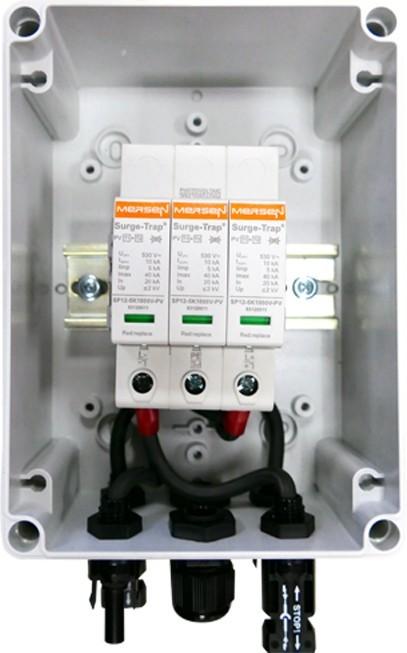

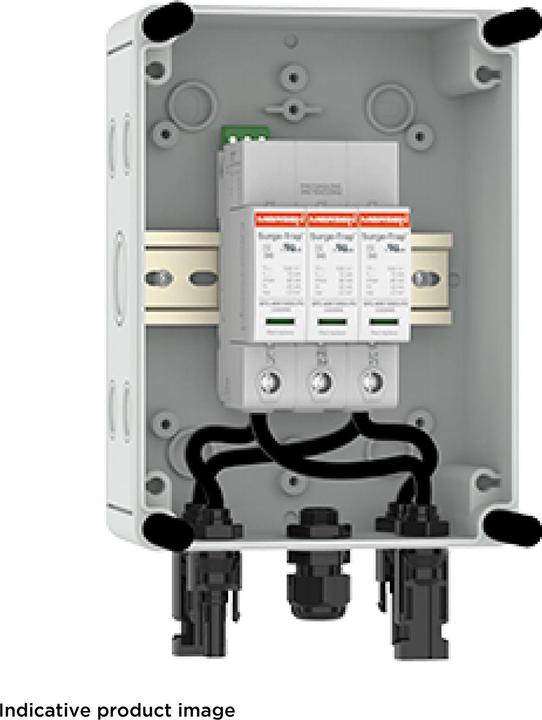

The Mersen Photovoltaic String Box 2 PVBT12-1000V-BH-113 is a series of DC photovoltaic generator connection boxes designed to protect inverters according to IEC/EN standards from lightning and overvoltage. The boxes are pre-installed and used in parallel with the inverters, primarily for 1000Vdc rooftop installations. The boxes are available in various configurations, such as with Type 1+2 or Type 2 surge protectors, cable glands, or MC4 connectors, and for different numbers of MPPTs and strings. EAN: 8435297875314.
