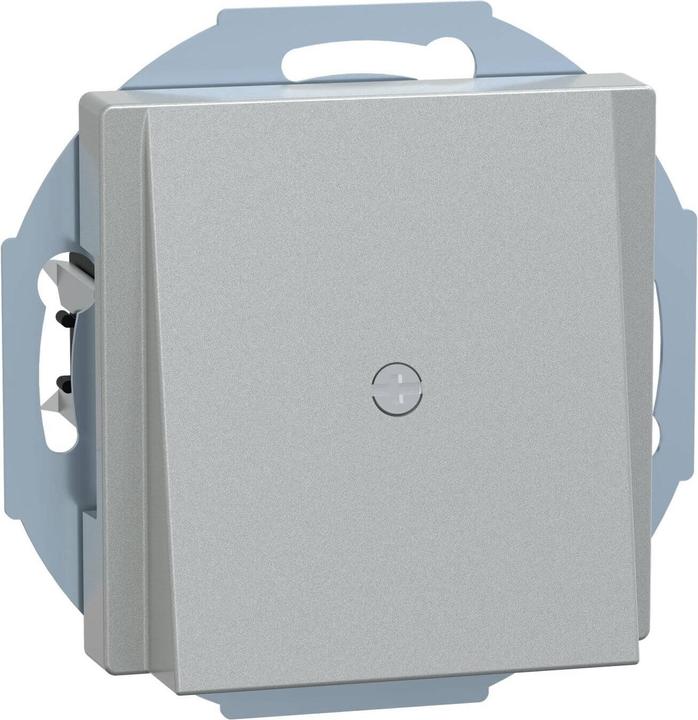

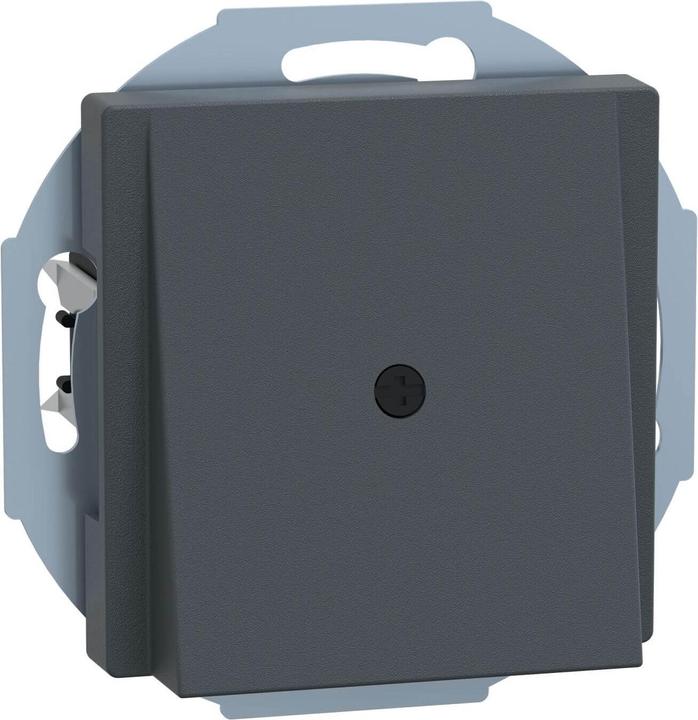

Merten central plate PWS 295619
Manufacturer: Merten
Designation: Central plate PWS
Cable outlet type: 295619
Assembly: Support ring with central plate
Usage: Cable outlet
Support ring: Yes
With dust protection: No
With hinged cover: No
Outlet direction: Straight
Labeling field: Without labeling field
With imprint: No
Mounting type: Flush-mounted
Material: Polycarbonate
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Finish: Matt
Color: Polar white
RAL number (similar): 9010
Transparent: No
Mounting type: Mounting with claw and screw
With sockets/couplings: No
With strain relief: Yes
Sockets shielded: No
Housing shielded: No
Luster terminal: No
Suitable for protection class (IP): IP20
Device width: 70 mm
Device height: 70 mm
Device depth: 35 mm

Merten central plate PWS 295619: More details
With support frame and strain relief. With claw and screw fixing. Adapter system M 5184xx. Intermediate ring with hinged cover system surface 5164xx. Material thermoplastic noble matt. Color polar white.
EAN: 4011281894499.
