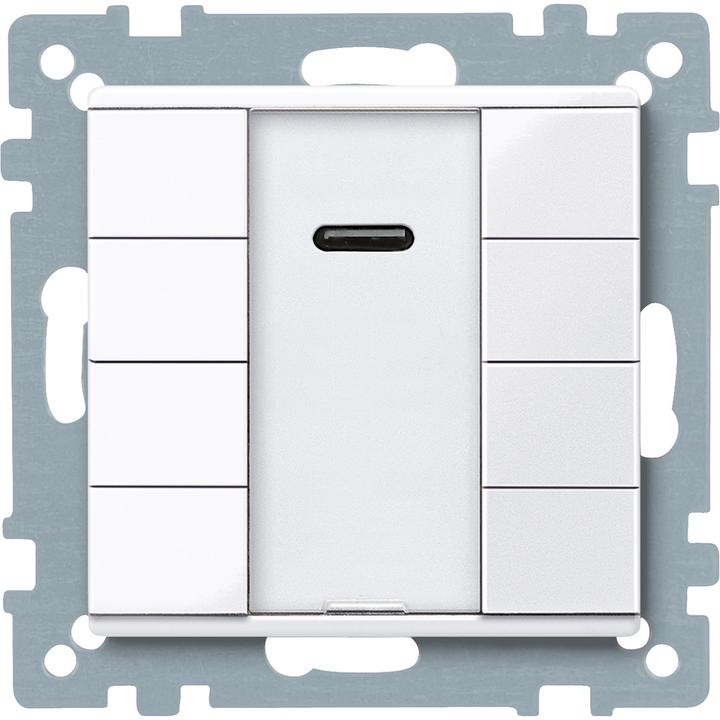

Merten Push Button 4f. plus pws/gl 617519

Manufacturer: Merten
Description: Push Button 4f. plus pws/gl with IR receiver
Type: 617519
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Radio: no
Mounting Type: Flush-mounted
With Theft/Dismantling Protection: no
With Bus Coupling: yes
Number of Control Points: 8
Number of Buttons: 8
With LED Display: yes
With Labeling Field: yes
With Display: no
Material: Polycarbonate
Material Quality: Thermoplastic
Surface Protection: untreated
Surface Finish: glossy
Color: polar white
RAL Number (similar): 9010
Transparent: no
With Room Thermostat: no
With Infrared Sensor: yes
Protection Class (IP): IP20
Minimum Depth of Device Box: 46 mm

Merten Push Button 4f. plus pws/gl 617519: additional details
In the Design System M. With integrated bus coupler. Push button with 8 control buttons, operational status display, and labeling field. The operational display can also be used as orientation light. The respective functions of the buttons can be controlled with an IR remote control. Control with a Merten Distance-IR remote control is already pre-programmed in the push button. Many other IR remote controls (e.g., existing TV or CD player remote controls) can be taught to the push button. The device is connected to the bus line via a bus connection terminal.

Software Functions KNX: Switching, toggling, dimming (single/double surface), shading (single/double surface), edges trigger 1-, 2-, 4-, or 8-bit telegrams (distinction between short/long press). Edges with 2-byte telegrams (distinction between short/long press). 8-bit slide control, scene recall, scene storage, lock functions.

Accessories: Labeling sheet for multifunction push button with IR receiver.
Scope of Delivery: With plaster protection cover. With bus connection terminal.
Material: Brilliant thermoplastic.
Color: glossy polar white.
EAN: 4042811047207.
