Niedax NIE DKV 220-78T60 R GK-vertical corner 90°, double-lined symme- tric, 220x61mm pulv
20 cmColour3
Length2
Product details

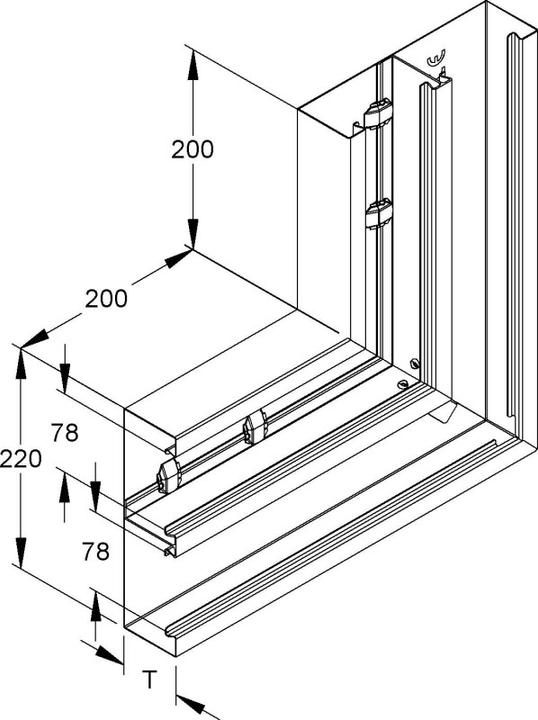

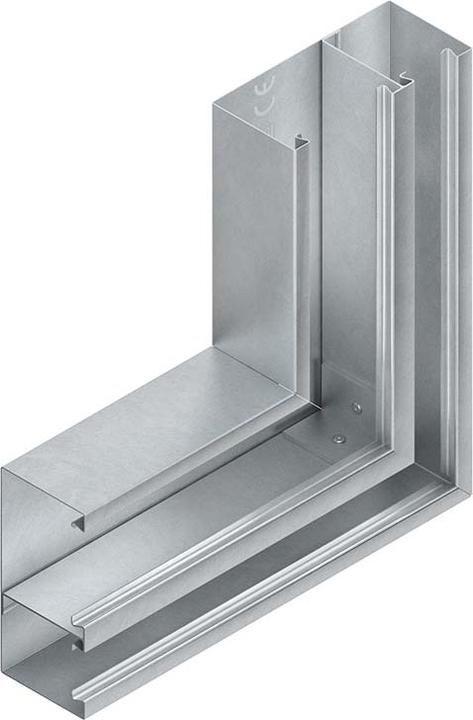

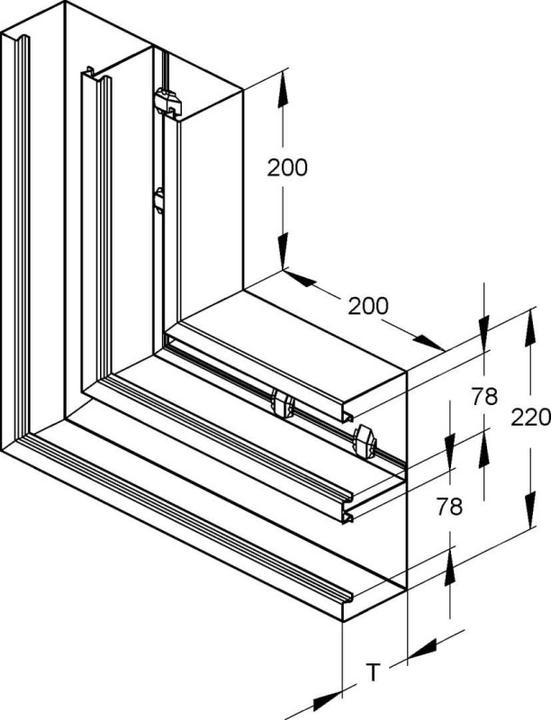

The NIE DKV 220-78T60 R GK vertical corner is a double-channel, symmetrical connection element for wiring ducts that enables efficient and secure cable management. Made from strip-galvanized steel according to DIN EN 10346, this product offers high robustness and durability. The electrostatic powder coating in RAL 9010 provides an appealing appearance and protects the material from corrosion. With a height of 220 mm and a width of 61 mm, the vertical corner is designed to accommodate two equally sized cable runs, which can be separated by retrofittable, self-contacting partition profiles made of aluminum. The construction allows for easy installation and effective potential equalization through the joint connectors. This product is VDE certified and suitable for applications with a maximum operating temperature of 60 °C.
- Double-channel, symmetrical design for optimal cable management
- Made from strip-galvanized steel according to DIN EN 10346
- VDE certified for increased safety
- Easy installation with retrofittable aluminum partition profiles.
Exact colour description | RAL 9010 |
Material | Steel |
Cable routing type | Wiring duct |
mounting style | Flying |
Height | 6.10 cm |
Width | 22 cm |
Length | 20 cm |
Item number | 32133648 |
Manufacturer | Niedax |
Category | Cable routing |
Manufacturer no. | DKV220-78T60R |
Release date | 16.11.2022 |
Colour | Grey |
Exact colour description | RAL 9010 |
Material group | Metal |
Material | Steel |
Cable routing type | Wiring duct |
mounting style | Flying |
Operating temperature | 60 °C |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Height | 6.10 cm |
Width | 22 cm |
Length | 20 cm |
