NZR Current Transformer TK80 300/5A

Manufacturer: NZR
Designation: Current Transformer 300/5A uncalibrated
Type: TK80 300/5A
Version: other
Primary rated current: 300 A
Secondary rated current: 5 A
Secondary rated apparent power: 2.5 VA
Accuracy class: 1
Overcurrent limiting factor: FS 5
Calibrated: no
With touch protection: yes
Height of opening: 80 mm
Opening width: 50 mm
Opening diameter: 50 mm
Snap fastening: no
With copper rail: no
Secondary connection: screw connection
Number of primary inputs: 1

NZR Current Transformer TK80 300/5A: additional details
Current transformers of the TK series are inductive, single-conductor current transformers operating on the transformer principle. They are used to adapt the primary measurement value to the input nominal values of the connected measuring devices. Due to the applied measurement principle, these current transformers are suitable for exclusive use in alternating current networks. The TK series is suitable for installation on both insulated and non-insulated primary conductors.

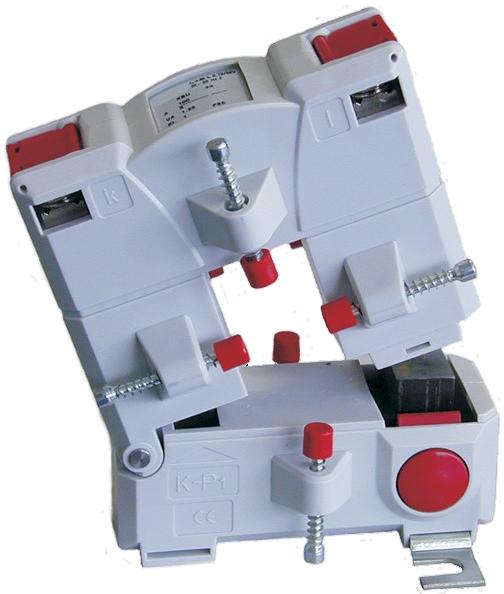

Current transformers for low-voltage systems (DIN EN 60044/1, DIN 42600, DIN VDE 0414/1), suitable for retrofitting without interrupting the circuit, core can be opened with a snap closure, frequency from 50 to 60 Hz, for secondary currents of 5 A, operating voltage up to 720 V, accuracy class 1 in accordance with IEC 1036, temperature range from -5 to +40 °C, for mounting on busbars and cable conduits.

TK80, primary current up to 300 A, secondary current 5 A, internal dimensions (H x W) 80 x 50 mm, external dimensions (H x W) 158 x 125 mm, depth (D) 34 mm, class 1, burden 2.5 VA. EAN: 4048652002917.
