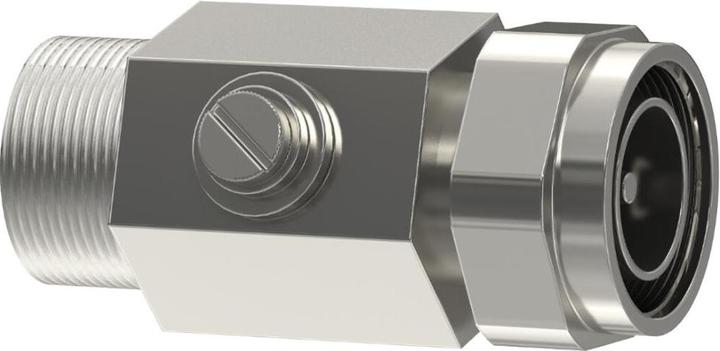

OBO Bettermann data line protection device DS-7 16 M/W

Manufacturer: OBO Bettermann
Designation: Data line protection device
Rated voltage DC: 170 V
Highest continuous voltage AC: 130 V
Highest continuous DC voltage: 185 V
Lightning impulse current (10/350 µs): 2.5 kA
Rated load current: 10 A
Protection level: 800 V
Protection level core/core: 800 V
Protection level core/earth: 800 V
Frequency: 0 MHz
Cut-off frequency: 3000 MHz
Mounting type: Connector/cable adapter
Connection 1: 7/16 Connector
Arrester monitoring: No
With remote signalling contact: No
Explosion-tested design: No
Protection class (IP): IP40

OBO Bettermann data line protection device DS-7 16 M/W: Further details

• Coaxial data line protection device
• Basic protection
• Simple installation (adapter plug)
• Optimum transmission behaviour
• High pulse load capacity
• With 7/16 connector

Application: For protection of mobile radio applications.
