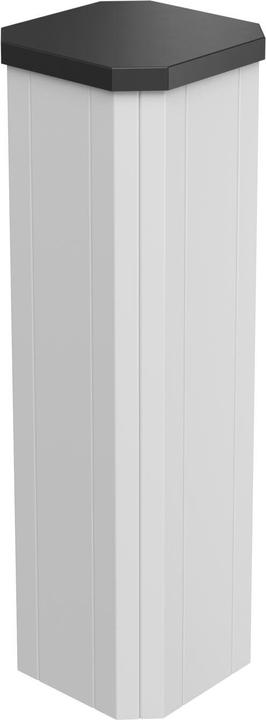

OBO Bettermann Installation Half Column ISSHS4 61OT3LGR

Manufacturer: OBO Bettermann
Description: Installation half column with system opening 80
Type: ISSHS4 61OT3LGR
Column shape: square
Design: other
Pre-wired: no
Adjustable: no
Height compensation: 0 mm
Column height: 680 mm
Column depth: 212 mm
Column width: 212 mm
Number of usable upper parts: 4
Upper part width: 76.5 mm
Mounting type: screws
Movable: no
Suitable for ceiling mounting: no
Suitable for floor mounting: yes
Cable entry: bottom
Continuous profile: yes
Material of the installation column: steel
Material quality of the installation column: other
Material of the installation column halogen-free: yes
Surface protection of the column: other
Color of the column: gray
RAL number of the column: 7035
Material of the upper part: steel
Material of the upper part halogen-free: yes
Color of the upper part: gray
RAL number of upper part: 7035

OBO Bettermann Installation Half Column ISSHS4 61OT3LGR: additional details
Installation column made of sheet steel with a 76.5 mm system opening on 4 sides. Empty, can be equipped from all 4 sides with up to 6 standard devices (socket, telephone, etc.), max. 24 devices. Mounting directly on the floor. Device installation boxes must be ordered separately. The installation column is suitable for accommodating front-facing device installation boxes of series 71GD...
EAN: 4012195143918.
