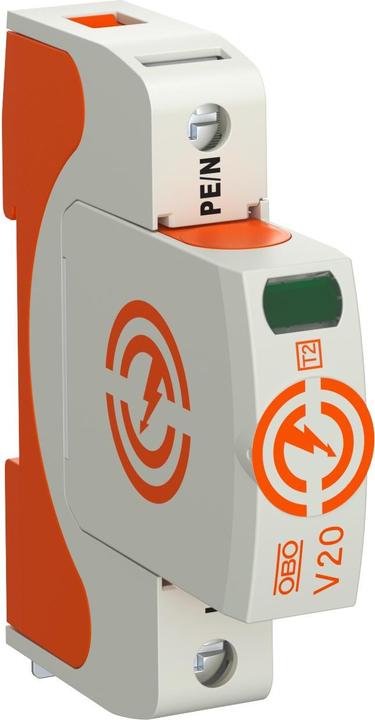

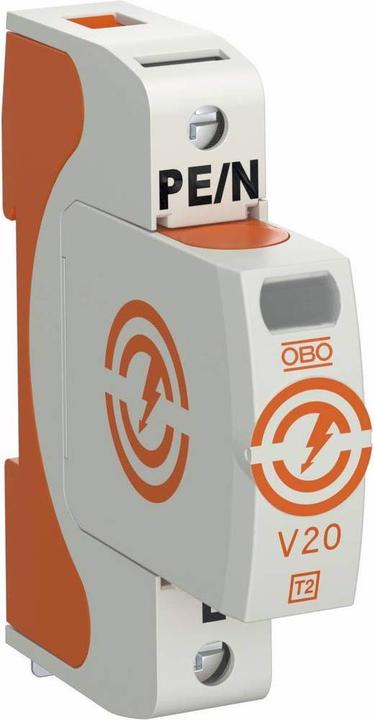

OBO Bettermann OBO SurgeController V20 single-pole 280V

Price in EUR including VAT
Delivered between Fri, 19.9. and Fri, 26.9.
Only 1 piece in stock at supplier
free shipping

Product details

The V20 surge arrester made of halogen-free plastic is suitable for surge protection potential equalization according to VDE 0100-443 (IEC 60364-4-44). It features a dynamic disconnection device and an optical status indicator, making it a modular plug-in arrester. The SurgeController is particularly suitable for potential equalization in main and sub-distributions, depending on the type, within TN networks. Thanks to the high-performance varistors, the discharge capacity reaches up to 40 kA (8/20) per pole. The vibration-resistant locking mechanism and the voltage and type coding ensure safety and prevent confusion between upper and lower parts. The wedge-shaped design of the contacts allows for easy insertion and even easier removal of the upper parts. The QR code printed on the rating plate enables quick and easy access to additional technical product information using mobile devices.

Key specifications

Surge protection type
Surge arrester
Number of conductors
1 x
Test class
Type 2
Mounting type
Top-hat rail
Item number
13048539

General information

Manufacturer
OBO Bettermann
Category
Surge protection
Manufacturer no.
5095161
Release date
7.4.2020

Surge protection properties

Surge protection type
Surge arrester
Number of conductors
1 x
Lightning impulse current
40 kA
Rated leakage surge current
20 kA
Nominal voltage
280 V
Protection level
1.30 V
Mounting type
Top-hat rail
Test class
Type 2
Protection type (IP code)
IP20

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Width
0.02 m
Height
0.09 m
