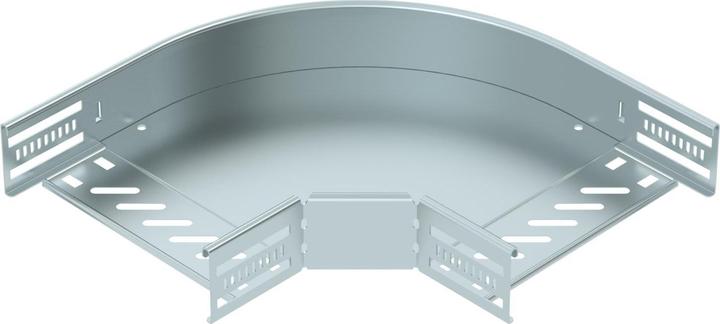

OBO Bettermann 90 Degree Bend RB 90 620 FS

Manufacturer: OBO Bettermann
Description: 90 Degree Bend 60x200 galvanized
Type: RB 90 620 FS
Direction Change: horizontal
Angle: 90°
Design: rigid bend
Bend Design: smooth bend
With Top Part: no
Inner Radius: 50 mm
Cable Tray Height: 60 mm
Cable Tray Width: 200 mm
Material Thickness: 0.8 mm
Side Hole: yes
Mounting Hole in Bottom: yes
NATO Hole Pattern: no
Execution: integrated connector
Suitable for Function Maintenance: yes
Material: Steel
Stainless Steel, Pickled: no
Surface Protection: galvanized
Operating Temperature: -20..120 °C
Color: zinc

OBO Bettermann 90 Degree Bend RB 90 620 FS: additional details
90° bend for creating a horizontal branch, fitting for snap-on and screwable cable trays with a side height of 60 mm. Tool-free installation with double clamps or screw connection using flat round screws FRS and combination nuts M6. Suitable for indoor use. Fastening material must be ordered separately.
EAN: 4012197343163.
