OBO Bettermann PV System Solution VG-BC900S11

Manufacturer: OBO Bettermann
Designation: PV System Solution Enclosure RAL7035
Type: VG-BC900S11
Number of Inputs: 1
Max. Input Voltage DC: 900 V

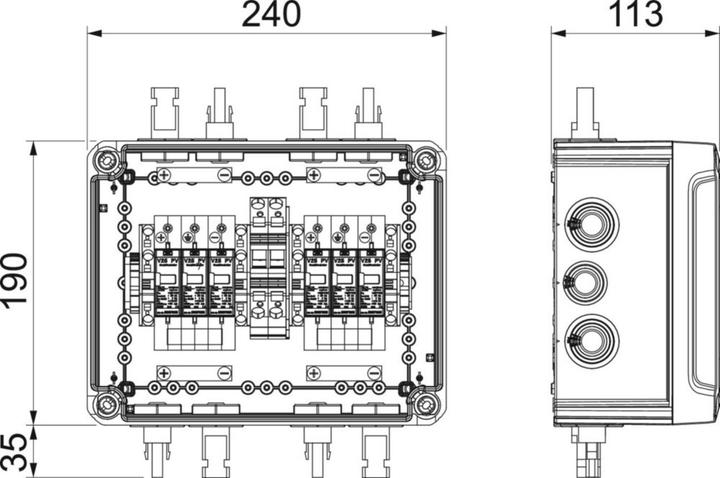

Width: 240 mm
Height: 190 mm
Depth: 113 mm
String Protection: none
Material: Plastic
Protection Class (IP): IP66
Impact Resistance: IK05
Test Class Type 1: yes
Test Class Type 2: yes
Test Class Type 3: no
Monitoring Function: no
Operating Temperature: -5..60 °C
Max. Input Current per String: 30 A
Max. Output Current: 30 A
Color: light gray
Number of Cable Entries: 8
Type of Entry: other
Number of String Inputs: 1
With Grounding Connection: yes
Equipped with Load Break Switch: no

OBO Bettermann PV System Solution VG-BC900S11: additional details
System solution Type 1+2 with MC4 connector for PV inverters with 2 separate MPP trackers. Varistor surge protector, pluggable with disconnection device in fault-resistant Y-circuit according to VDE 0100-712 (50539-12) Type 1+2. Combined surge protector for lightning protection potential equalization according to EN 62305 (VDE 0185-305). Low DC protection level: < 3.0 kV (Uoc max = 900V DC with V25-B+C/0-450PV). One PV string input (MC4 connector) to one MPP inverter input, up to 30A DC per terminal pre-assembled in polycarbonate enclosure (IP66), UV-resistant for outdoor use. For DC protection of inverters in PV systems. Additional measures may be necessary in case of condensation risk due to wind, ice, temperature, or sun!
EAN: 4012196440580.
