Phoenix Contact ÜSS plug
Price in EUR including VAT
Delivered between Sat, 22.11. and Sat, 6.12.
free shipping
Product details

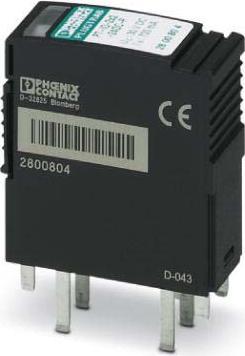

Phoenix Contact ÜSS plug PT-IQ-2X2-48DC-P Manufacturer :Phoenix Contact Designation :ÜSS plug for 2 signal circuits Type :PT-IQ-2X2-48DC-P Rated voltage DC :48 V Maximum continuous voltage AC :37 V Maximum continuous voltage DC :53 V Rated load current :0.3 A Mounting type :other Connection 1 :other Arrester monitoring :yes With remote signalling contact :no Signalling on the device :optical Explosion-proof version :no Phoenix Contact ÜSS plug PT-IQ-2X2-48DC-P: further details Surge protection plug with integrated multi-level status display on the module for two 2-wire floating signal circuits. Rated voltage: 48 V DC , EAN: 4046356705974.
Surge protection type | Surge arrester |
Number of conductors | 2 x |
Item number | 36762065 |
Manufacturer | Phoenix Contact |
Category | Surge protection |
Manufacturer no. | 2800810 |
Release date | 28.6.2023 |
Colour | Black |
Exact colour description | Black |
Material group | Plastic |
Material | Polyamide |
Surge protection type | Surge arrester |
Number of conductors | 2 x |
Lightning impulse current | 0 kA |
Rated leakage surge current | 0 kA |
Nominal voltage | 48 V |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 0.05 m |
Width | 0.02 m |
Height | 0.05 m |
Weight | 50.50 g |
Product Safety |
