Output speed: 12 rpm
Supply voltage: 24 V DC
Output torque max: 300 mNm
Shaft diameter: 5 mm
Gear head type: Track
Length: 62.3 mm
Width: 27.7 mm
Housing mounting: Iron core

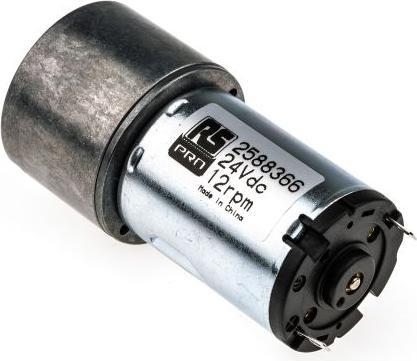

This 12/24 V DC gear motor, model IG 33, is designed for applications such as vending machines, magnetic card readers, printer mechanisms, actuators, and various button control systems. It features a full metal gear head with sintered iron gears running on hardened steel shafts. The output shaft operates in sintered bronze bearings and includes a five-pole rotor hub with VDR suppression.
