Actuator type: Plunger
Contact number and position: DPST
Contact configuration: Normally open/normally closed contact
Protection class: IP67
Current max: 5 A
Housing material: Thermoplastic
AC voltage max: 240V
DC voltage max: 250V
Connection type: Cable
Contact type: Snap
Connection type: Wire connection
Length: 31.5mm
Width: 60mm
Standards met: CE, CSA, RU, UL, IEC 947-5-1, EN 60947-5-1

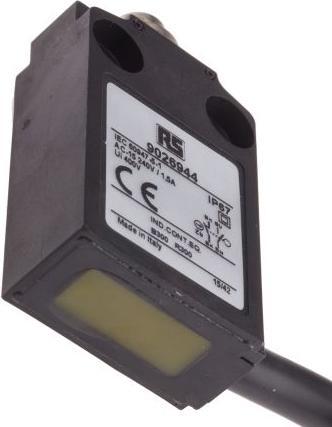

The RS limit switch IP67 EM/EP series features easy-to-use electromechanical limit switches that offer special qualities and specially designed detection devices. These include features such as presence/absence detection, positioning, end position detection, passing objects, and counting. The EP series limit switches are made of thermoplastic material, while the EM series limit switches are constructed from zinc alloy sealed with epoxy resin at the base of the housing, complying with IP67 protection.

Key features include visible operation, the ability to change high currents (5 A conventional thermal current), electrically separated contacts, precise operating points for consistency, and insensitivity to electromagnetic interference. A choice of actuating heads is available, including simple plunger, roller plunger, and roller lever. Both plastic and metal enclosures are designed to meet IP67 standards, with all units being pre-wired. The plastic enclosures are double insulated.
