The curtain detector provides a narrow detection angle. The ACD-220-BR works with other devices compatible with the ABAX2 wireless system.

Support: Wireless alarm systems SATEL ABAX2

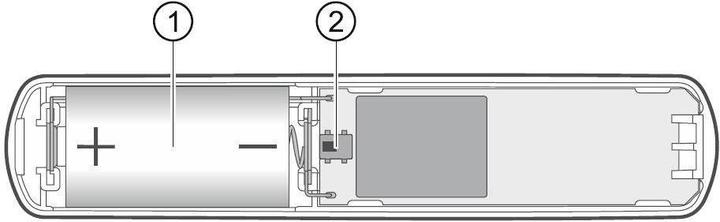

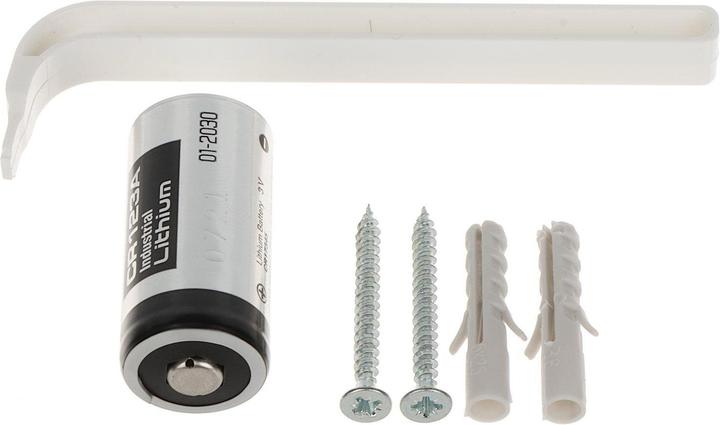

Battery power: 1 x CR123A 3 V Lithium battery (included)
Battery life: approximately 2 years
Power consumption: 15 mA (max), 70 µA (standby mode)
Frequency range: 868.0 to 868.6 MHz
Radio communication distance (in open area): maximum 2000 m ACU-220, maximum 1200 m ACU-280
Application: Indoor
Sensor type: Passive IR (PIR)

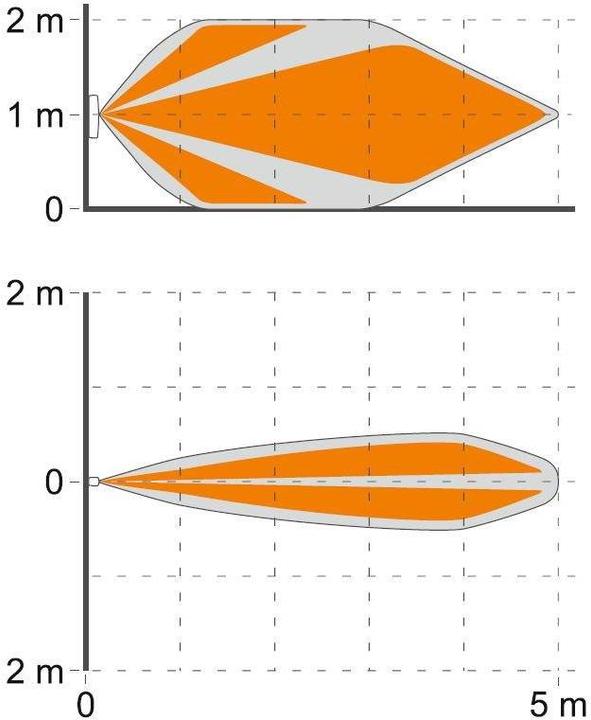

Detection angle / detection distance: 15° / 5 x 1 m
Sensitivity adjustment: Yes
Pre-alarm function: No
Digital temperature compensation: Yes
Animal resistance: No
Detected movement speed: 0.3 to 1 m/s
Compliance with standards: EN50130-4, EN50130-5
Environmental class: II according to EN50130-5

Key features:

• Coated lenses
• Digital detection algorithm with temperature compensation for high resistance to false alarms and parameter repetition
• Two-way encrypted radio communication - AES
• Interference protection due to frequency change ensures reliable transmission
• Monitoring of motion detection system
• Battery status monitoring
• Option "ECO" provides up to four times longer battery life (ABAX2 only)

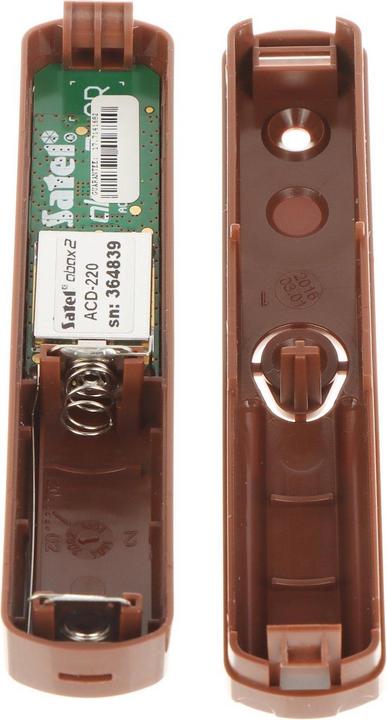

• Tamper detection - housing opening, tear-off
• LED indication
• Remote module software update
• Remote configuration
• Temperature sensor installed
• Temperature measurement: -10 °C to 55 °C

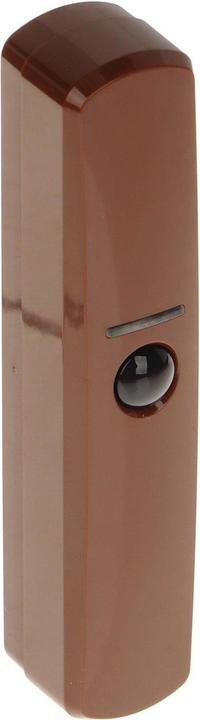

Color: Brown
Working temperature: -10 °C to 55 °C
Weight: 0.022 kg
Dimensions: 105 x 25 x 20 mm
Manufacturer / Brand: SATEL
Warranty: 2 years.
