Schellenberg Drive Action

Price in EUR including VAT, free shipping
Delivered between Sat, 24.5. and Wed, 28.5.
More than 10 items in stock at supplier

Product details

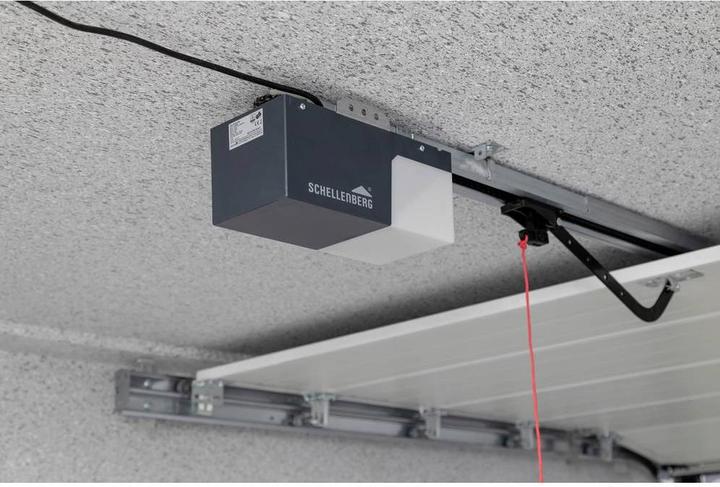

With an extensive safety and comfort equipment, the garage door opener stands out significantly from other models in its price range. The simple one-person installation and the automatic end position adjustment allow the garage door opener to be operational in a short time. The four-part guide rail of the DRIVE Actions is mounted on the ceiling and is made of galvanized, torsion-resistant steel. Furthermore, the sliding carriage located in the guide rail is connected to the door arm, the angle attached to the door, and the drive chain.

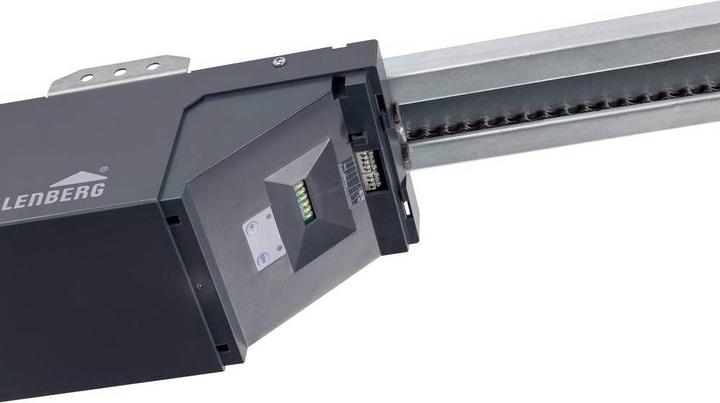

When the garage door opener is activated, the motor adjusts to the existing garage door and automatically adapts the force setting with each operation. Upon reaching the set endpoints, the motor switches off precisely through electronic path detection. The motor head is mounted on a galvanized steel plate, providing it with greater stability. The control panel and additional connection options are concealed inside the light cover. The connections can be used, for example, for separate lighting or a door contact. An energy-saving LED light is already integrated into the motor head. The lighting automatically turns off three minutes after the opener is operated or can be manually turned on or off using the remote control, independently of the garage door opener.

Safety is a top priority in the development of all garage door openers by Schellenberg. Therefore, all models of garage door openers are equipped with automatic obstacle detection, motor overheating protection, an internal emergency release, and secure radio transmission. The radio operates at 433.92 MHz and is secured with a so-called rolling code, making it difficult for unauthorized individuals to intercept the radio signal. In the event of a power outage, the programming of the DRIVE Actions remains intact.

Key specifications

Electric motor type
Garage door drive
Rated voltage
230 V
Rated frequency
433000000 Hz
Weight
13.74 kg
Item number
15759557

General information

Manufacturer
Schellenberg
Category
Electric motors
Manufacturer no.
60920
Release date
29.4.2021
External links

Electric motor features

Electric motor type
Garage door drive
Rated voltage
230 V
Rated frequency
433000000 Hz
voltage type
DC
Protection type (IP code)
IP20

Power

Power
0.20 kW

Energy supply

Power supply
Electrical connection

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery

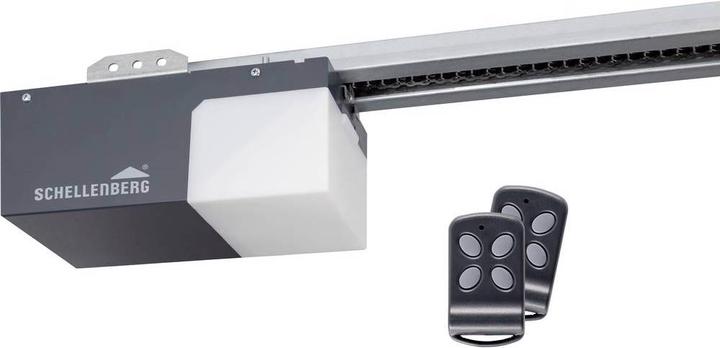

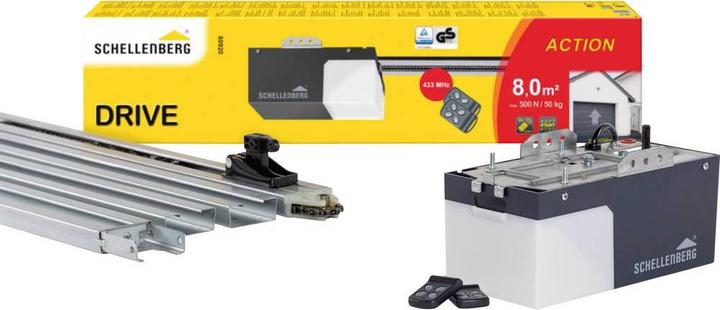

1 x door mounting bracket1 x motor head with mains cable1 x wall mounting bracket2 x 4-channel hand-held transmitter2 x U-brackets3 x connecting pieces for guide rails4 x guide rails (75 cm each)

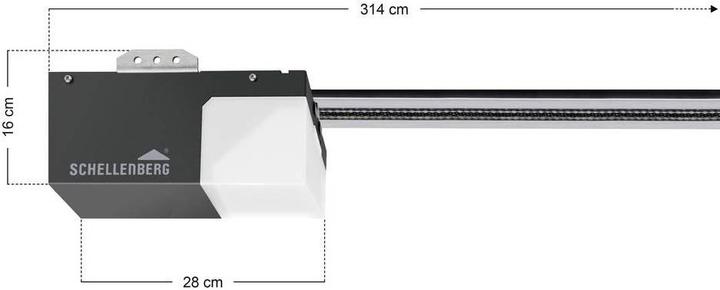

Product dimensions

Length
28.50 cm
Width
28 cm
Weight
13.74 kg

Package dimensions

Length
85.20 cm
Width
19.60 cm
Height
18.80 cm
Weight
13.52 kg
