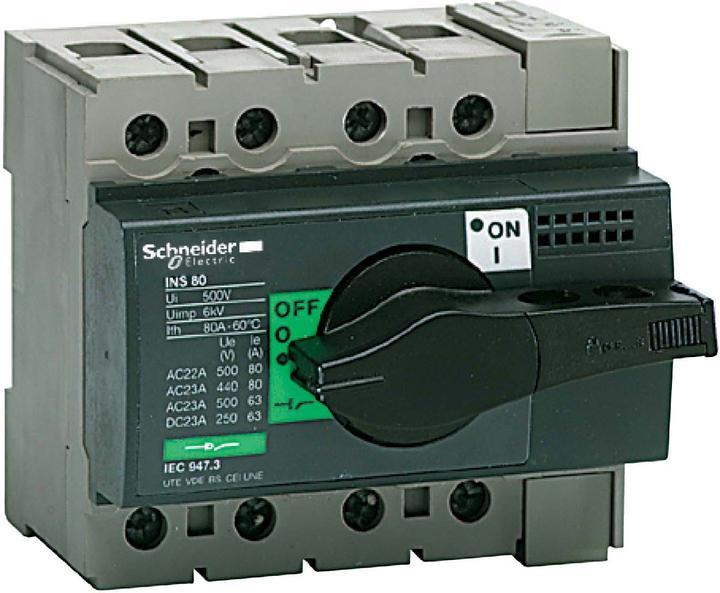

Schneider Electric load-break switch 28904

Manufacturer: Schneider Electric
Designation: Load-break switch INS80 3p Interpact
Type: 28904
Version as main switch: Yes
Version as maintenance/repair switch: Yes
Version as safety switch: No
Version as emergency off device: No
Version as reversing switch: No
Number of switches: 1
Max. rated operational voltage Ue at AC: 500 V
Rated operational voltage: 500 V
Rated continuous current Iu: 80 A
Rated continuous current at AC-23, 400 V: 72 A
Rated short-time withstand current Icw: 3 kA
Rated operational power at AC-23, 400 V: 37 kW
Rated short-circuit current Iq: 36 kA
Number of poles: 3
Number of auxiliary contacts as changeover contacts: 2
Motor drive optional: No
Motor drive integrated: No
Voltage release optional: No
Type of device: Built-in device
Fixed installation technology
Suitable for floor mounting: Yes
Suitable for front mounting 4-hole: Yes
Suitable for front mounting central: Yes
Suitable for distributor mounting: Yes
Suitable for intermediate mounting: No
Colour of actuating element: Black
Design of operating element: Long rotary handle
Lockable: Yes
Type of connection main circuit: Screw connection
Degree of protection (IP), front side: IP40

Schneider Electric switch-disconnector 28904: further details
Compact INS switch-disconnector. Switch-disconnector INS80, 80A/690V AC / 250V DC, rotary actuator black. Rated current 80 A, number of poles 3. Complete units with black switch lever. Disconnecting characteristics according to VDE 0660 part 100. Rotary drive frontal or lateral up to INS250. EAN: 3303430289043.
