Schneider AC servo, SH3, 40 mm, 0.39 nm, feather key IP54/IP65, multiturn 16 P/U, 2x Y-TEC, brake
Price in EUR including VAT
free shipping

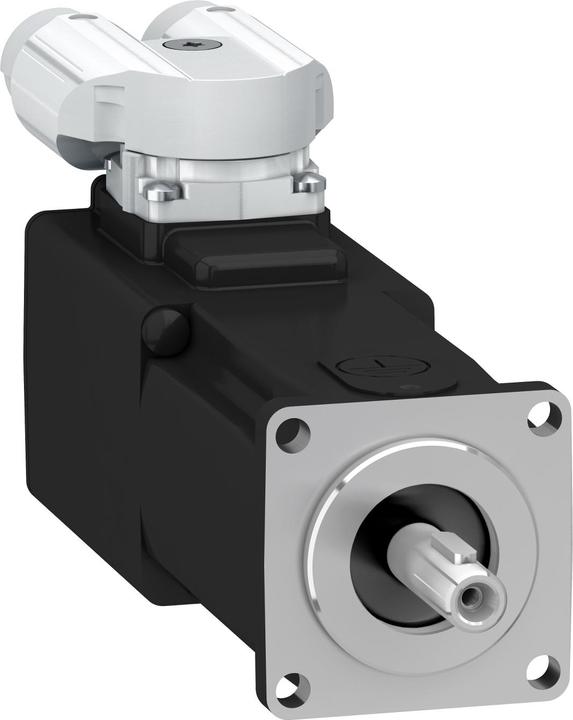

Lexium SH3 Servomotor. This SH3 series of AC servomotors features a low rotor inertia, enabling high acceleration capabilities for dynamic applications. Thanks to the winding technology, it offers a higher power density in a compact design. This servo has a nominal continuous stall torque of 0.39 Nm and achieves a peak torque of 1.50 Nm. Its nominal speed can reach up to 9000 RPM, depending on the supply voltage. A voltage-dependent nominal power of up to 292 W is available. The built-in encoder is a multiturn type with 16 periods/revolution (16x1024x4096) in SinCos Hiperface format. The electrical connection is made via 2x Y-TEC connectors, which are angled at 90° and rotatable. The motor flange for mounting has a diameter of 40 mm. The drive shaft has a diameter of 8 mm. The shaft end is equipped with a key and complies with protection class IP54. The motor housing meets protection class IP65. An integrated holding brake is included. For operating the synchronous motor, the servodrives from the Lexium series, Lexium 52 and Lexium 62, are recommended.
Electric motor type | Servomotor |
Item number | 41005353 |
Manufacturer | Schneider |
Category | Electric motors |
Manufacturer no. | SH30402P17F2000 |
Release date | 18.12.2023 |
Electric motor type | Servomotor |
voltage type | AC |
Protection type (IP code) | IP54, IP65 |
Max. Speed | 9000 RPM |
moment of force | 0.39 Nm |
Country of origin | Germany |
