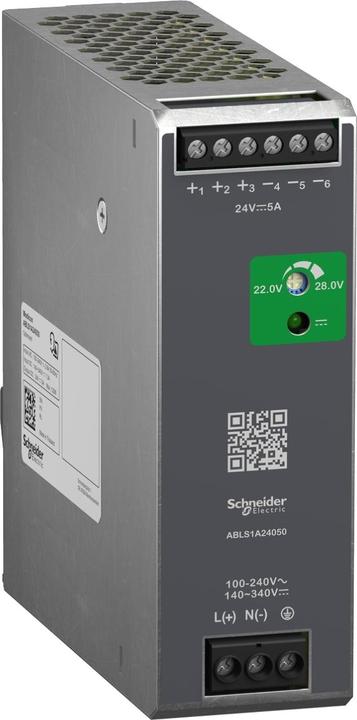

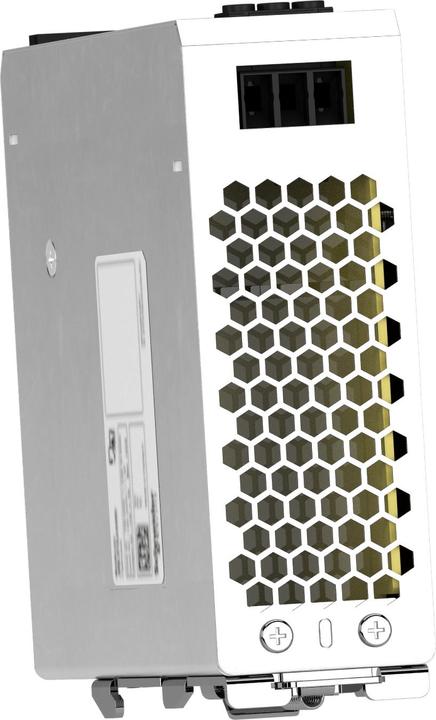

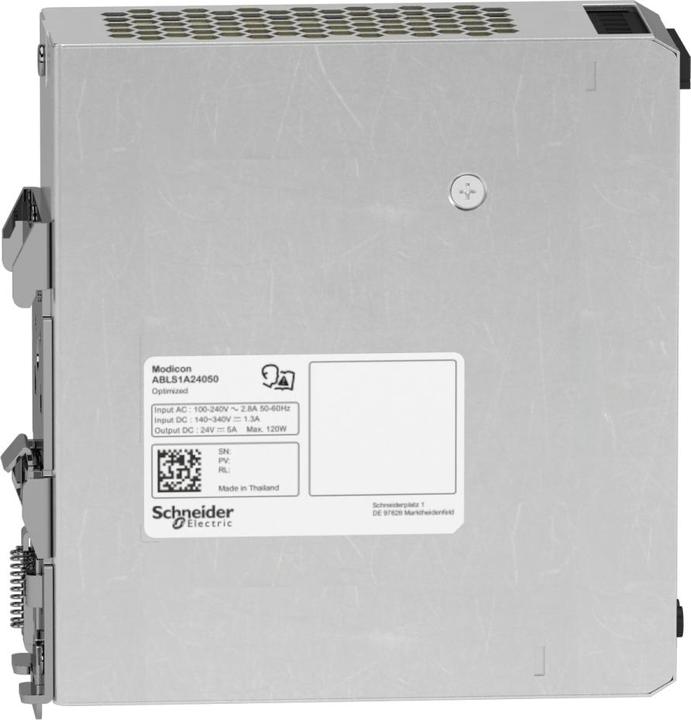

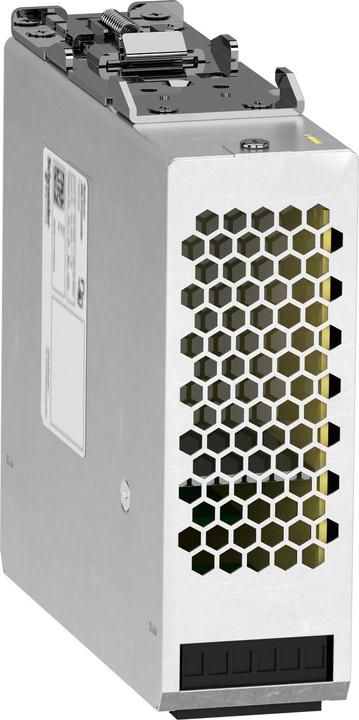

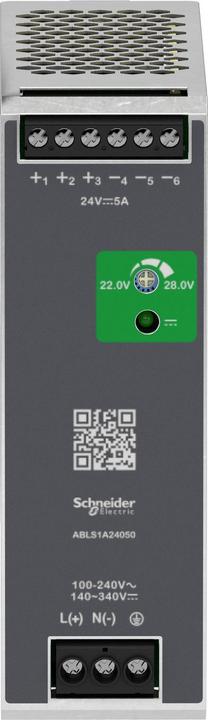

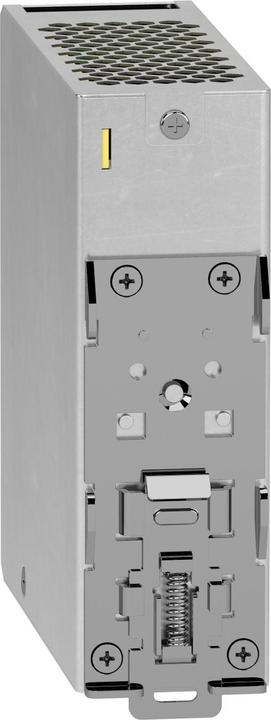

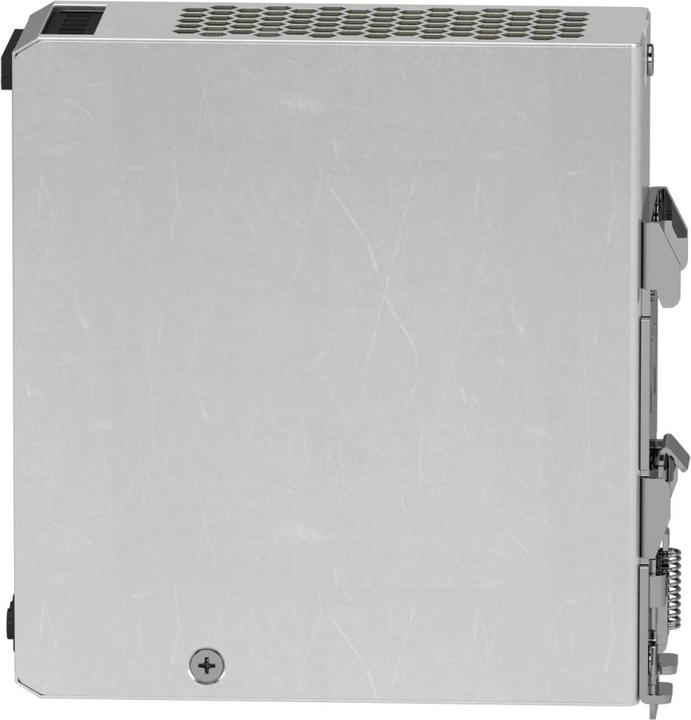

Schneider Electric Power Supply ABLS1A24050

Manufacturer: Schneider Electric
Designation: Power supply 24VDC, 5A, 120W, 1-p
Type: ABLS1A24050
Supply voltage type: AC
1st output voltage: 100-240 V
Max. output current 1: 5 A
Output voltage adjustable: no
Output current 1: 5 A
Rated output voltage 1: 24 V
Rated output current 1: 5 A
Short-circuit proof: no
Rated supply voltage at AC 50 Hz: 100-240 V
Rated supply voltage at AC 60 Hz: 100-240 V
Rated supply voltage at DC: 100-250 V
Output voltage regulated: no
Power consumption: 21.2 VA
Power output: 25 W
Stabilised: yes
Electrical connection type: Screw connection
Mounting rail mounting possible: yes
Wall mounting possible: no
Suitable for in-line mounting: no
Installation width: 40 mm
Installation height: 123.6 mm
Direct mounting possible: no
Width: 40 mm
Height: 123.6 mm
Depth: 117.6 mm
Suitable for safety functions: yes
SIL according to IEC 61508: without
Performance Level according to EN ISO 13849-1: without
Protection class (IP): IP20

Schneider Electric Power Supply ABLS1A24050: further details
Modicon power supply of the OPTIMUM series for industrial, commercial, and residential applications. Output with 24V/5A. Rated power 120W. Metal housing for snapping onto a top-hat rail. 1-phase. Possible operating temperature up to +70°C. Housing colour is metal grey. Input at the bottom, outputs at the top of the unit. Input voltage 100-240 VAC (50/60 Hz). Access to documentation via QR code on the unit. IEC/EN 62368-1 compliant, CE, CB Scheme, cULus, cURus, RCM, EAC. The Modicon ABLS OPTIMUM series includes power supplies with output voltages of 12VDC, 24VDC, or 48VDC. EAN: 3606481500236.
