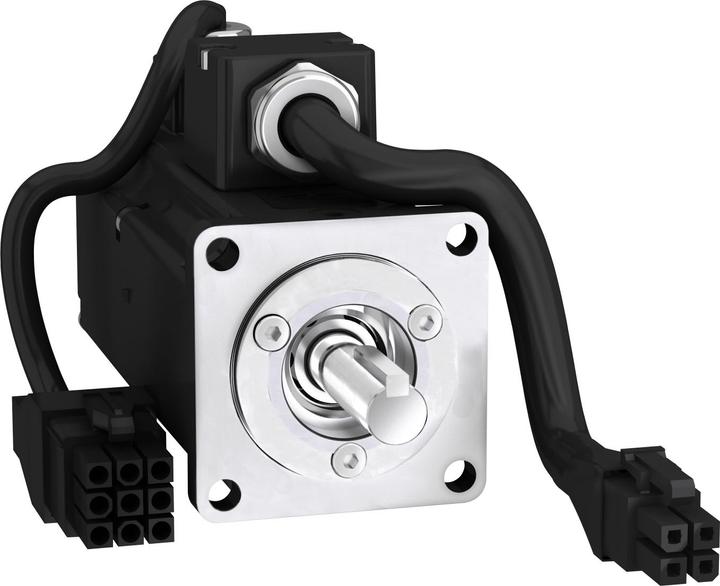

BCH2 servomotor from the Lexium 28 servo drive series. The BCH2 series includes brushless synchronous AC servomotors with compact dimensions for dynamic applications. This servo has a nominal continuous stall torque of 0.16 Nm. Its winding type is optimized for torque at 3000 RPM and features a medium inertia. The rated power is 50 W. The electrical connection is made via free wires. The motor flange has a diameter of 40 mm for mounting. A high-resolution 20-bit absolute encoder as a single-turn allows for precise control. The shaft end is designed for a key and is compliant with protection class IP65. The motor housing also meets the IP65 protection class. There is no holding brake present. The corresponding servo amplifier from the Lexium 28 series is required for operation: LXM28.U20M3X. Thanks to the Green Premium environmental label, you can obtain detailed information about material contents, environmental impacts, and circular economy, which support your sustainability goals.
