Schneider Electric Compact Circuit Breaker C40H42D400

Manufacturer: Schneider Electric
Designation: Compact Circuit Breaker ComPacT NSX400H with type: C40H42D400
Rated Continuous Current Iu: 400 A
Rated Voltage: 690 V
Rated Short-Circuit Breaking Capacity Icu at 400 V, 50 Hz: 70 kA
Overload Relay Current Setting: 100..400 A
Setting Range of the Short-Time Delay Short-Circuit Release: 216..4000 A
Setting Range of the Instantaneous Short-Circuit Release: 4800 A
Integrated Earth Fault Protection: no
Connection Type Main Circuit: Screw Connection
Device Design: Built-in Device Fixed Installation Technology
Suitable for DIN Rail Mounting: no
DIN Rail Mounting Optional: no
With Trip Indicator: no
Number of Poles: 4
Position of Connection for Main Circuit: front
Design of Actuating Element: Toggle Lever
Complete Device with Protection Unit: yes
Motor Drive Integrated: no
Motor Drive Optional: yes
Protection Class (IP): IP30

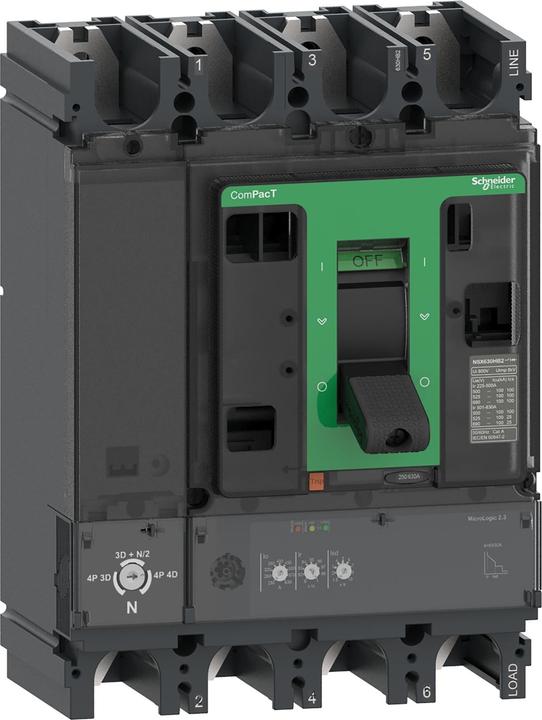

The ComPacT NSX400H is a complete 4P 4d circuit breaker for fixed installation, designed to optimize space and breaking capacity. It is an optimal choice for all standard and special applications. The breaking capacity (Icu) is 70 kA effective at 415 VAC, 50/60 Hz. The operating voltage is 690 VAC 50/60 Hz. This product features an electronic release device MicroLogic 2.3 with a rated capacity of 400 A. The MicroLogic 2.3 release device offers adjustable long-time and short-time protection functions as well as a fixed instantaneous protection. This 4-pole version (185 mm x 255 mm x 110 mm) is available with various optional features and accessories. It complies with international standards (IEC 60947), CCC, EAC, and marine specifications. The ComPacT NSX400H is part of Schneider Electric's EcoStruxure Power architecture.
