Schneider Electric Connection Module LXM32i VW3M9216

Manufacturer: Schneider Electric
Designation: Connection Module LXM32i EtherCAT/EtherNet
Type: VW3M9216
Supply Voltage at DC: 24 V
Type of Supply Voltage: DC
Number of Digital Inputs: 4
Number of Digital Outputs: 2
Configurable Digital Inputs: no
Configurable Digital Outputs: no
Type of Digital Output: other
Short Circuit Protection for Outputs: no
Redundancy Capability: no
Type of Electrical Connection: other
Suitable for Safety Functions: no
SIL according to IEC 61508: 1
Performance Level according to EN ISO 13849-1: none
Associated Equipment (Ex ia): no
Associated Equipment (Ex ib): no
Explosion Protection Category for Gas: other
Explosion Protection Category for Dust: other
Width: 12.5 mm
Height: 99 mm
Depth: 75 mm

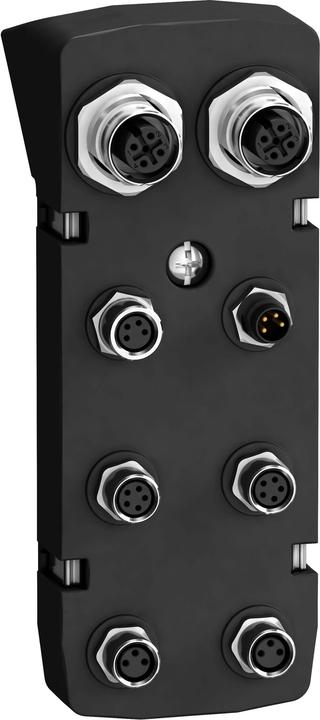

The LXM32i VW3M9216 connection module is a module for the integrated servo drive of the Lexium 32i series. This integrated servo drive offers a modular concept consisting of a drive unit, control unit, and connection modules, which can be assembled according to specific applications. This connection module provides 2 digital inputs and 2 digital outputs via M8 connectors. The inputs are designed in negative logic (sink). Connections for the safety function STO are available. This connection module requires the control unit for EtherCat or Ethernet (PROFINET) at the BMI drive unit. The bus connection is made via 2x M12 connectors.
